Check PCM/TCM
- Ignition "ON" & Engine "OFF".
- Connect "OUTPUT SPEED SENSOR" connector.
- Install scantool and sleet a SIMU-SCAN,
- Simulate frequency to OUTPUT SPEED SENSOR signal circuit.

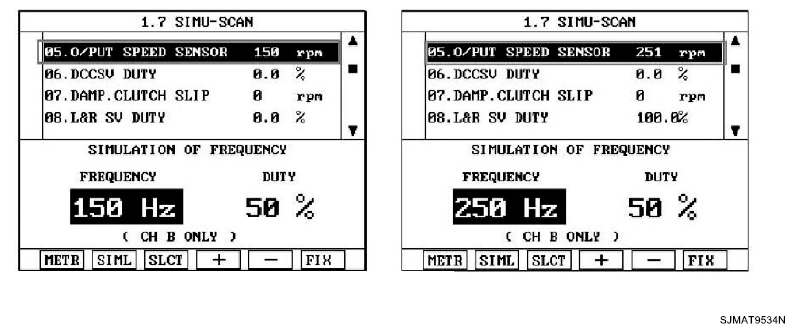

Fig 1) OUTPUT 150Hz → 150rpm
Fig 2) OUTPUT 250Hz → 250rpm
* The values are subject to change according to vehicle model or conditions.
- Is "OUTPUT SPEED SENSOR" signal value changed according to simulation frequency?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good PCM/TCM and check for proper operation. If the problem is corrected, replace PCM/TCM as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
