ABS Control Module: Components

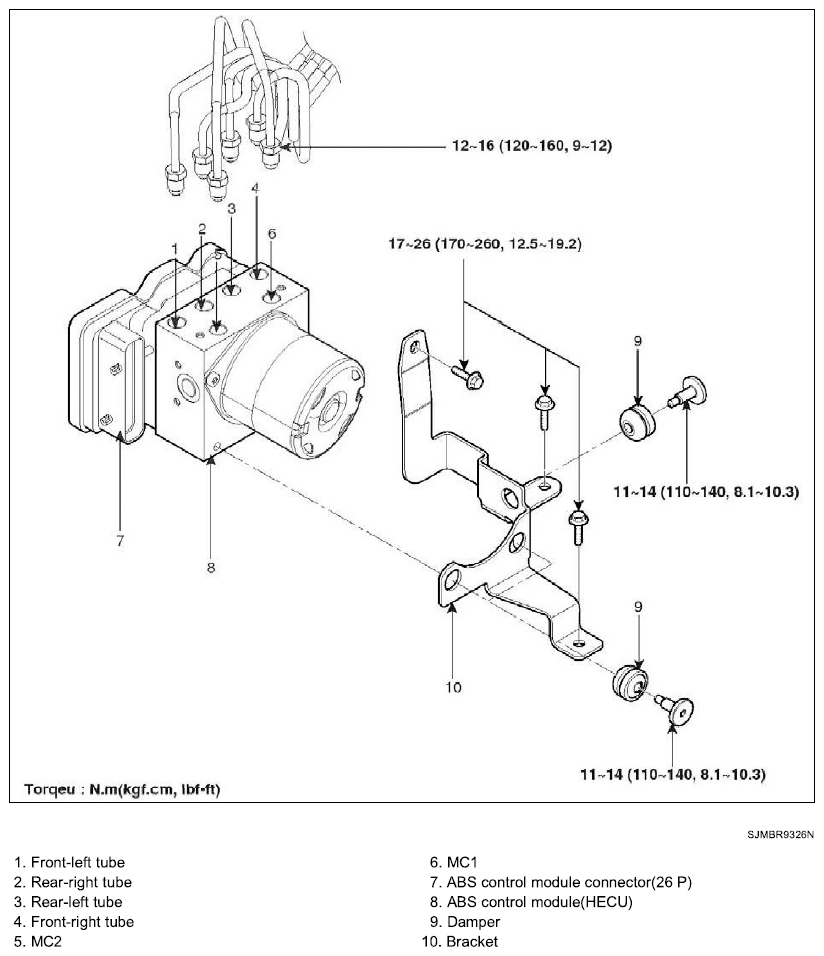

Fig 1: ABS Control Module Replacement Components With Torque Specifications
G06207412Courtesy of HYUNDAI MOTOR CO.
