Memory Positioning Systems: Service and Repair





Inspection

IMS Connectors

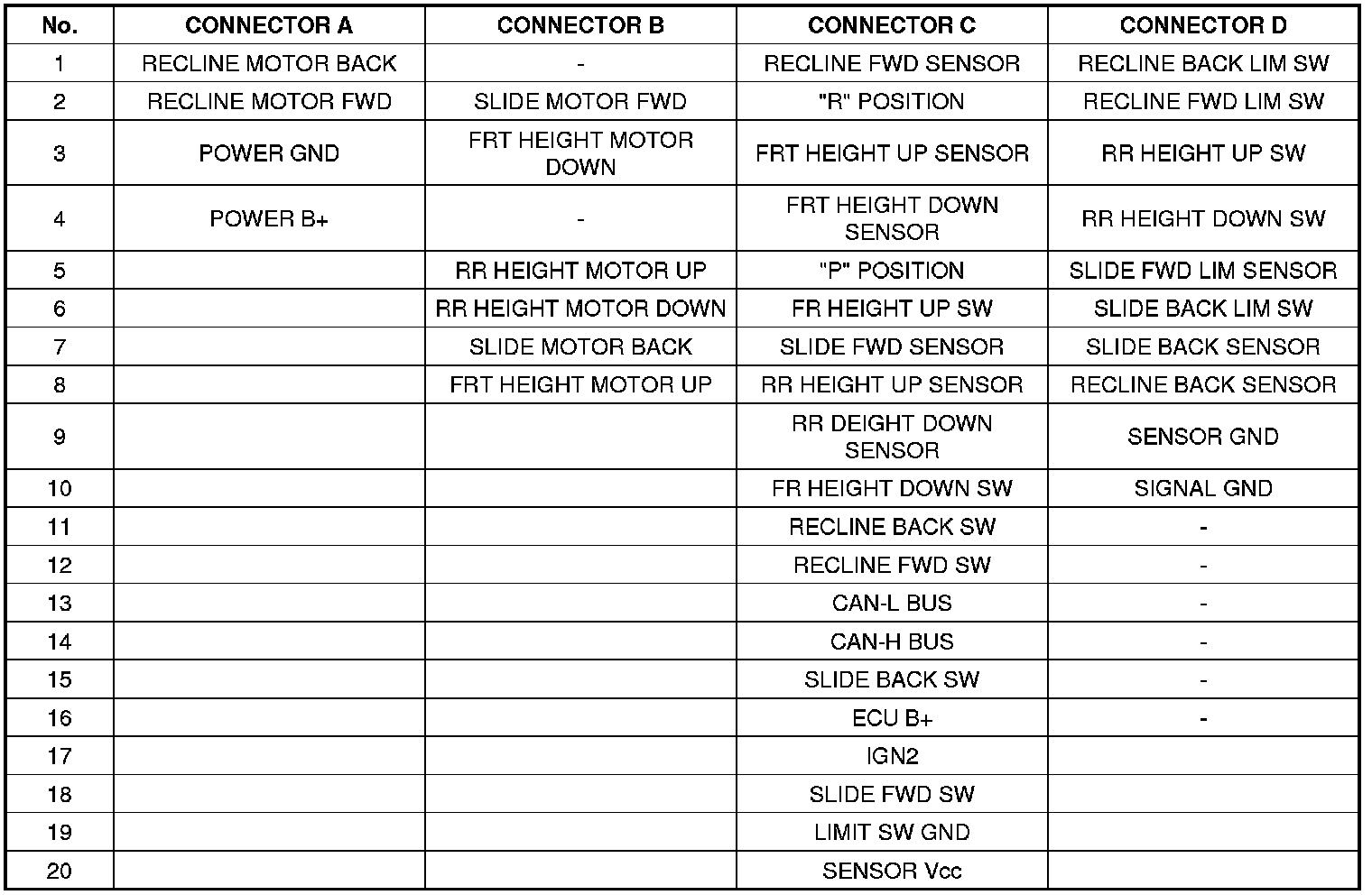

Connector Pin Name

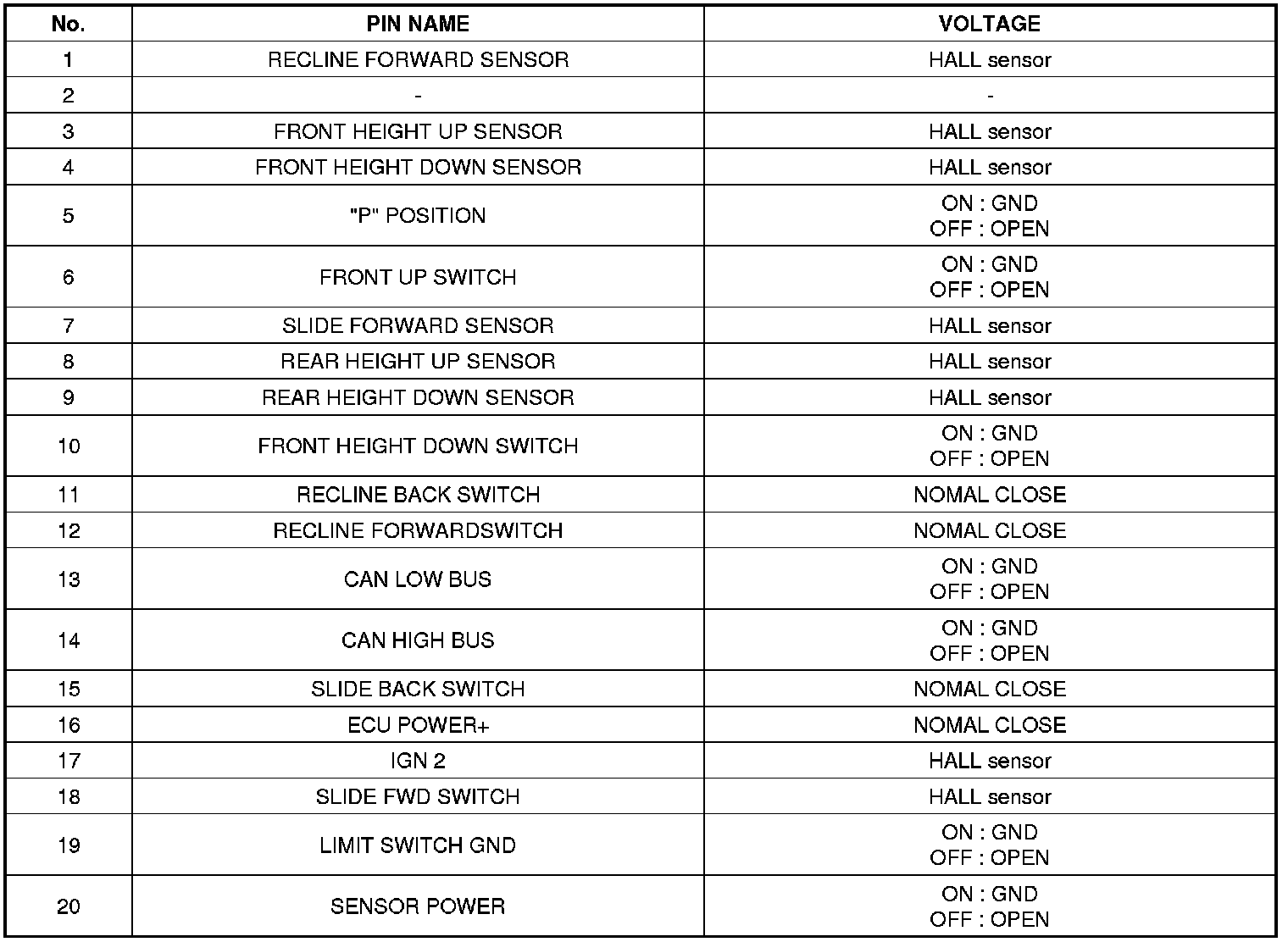

IMS Input/Output Specification

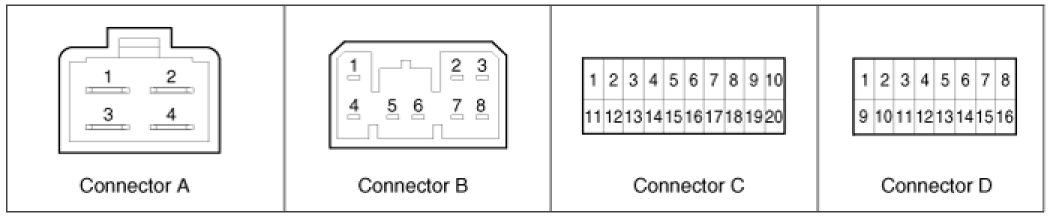

Connector A





Connector B





Connector C





Connector D
