Window Track: Service and Repair

Replacement

Rear Channel Replacement
1. Remove front door trim.
2. Remove the door trim seal.
3. Remove the glass.

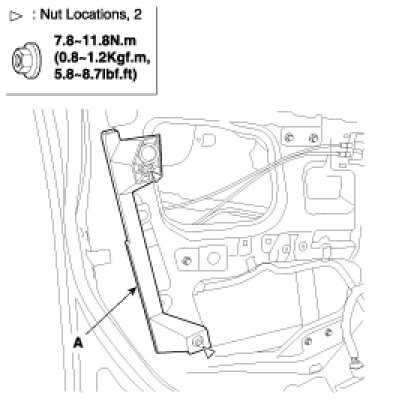

4. Remove the rear channel(A).




5. Installation is the reverse of removal.

NOTE:
- If the door trim seal is damaged, it must be replaced.
