Component Location

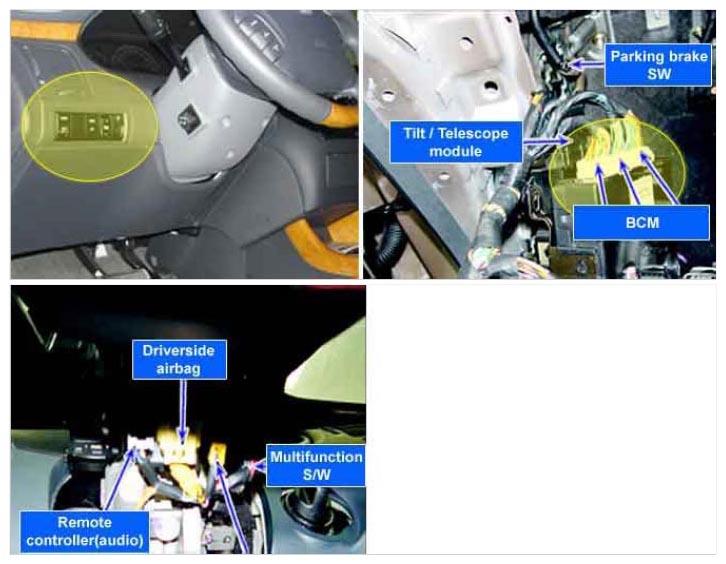

Fig 1: Identifying Tilt/Telescope Module, Parking Brake Switch, BCM, Driver Side Airbag, Multifunction Switch And Remote Controller Location
G06803453Courtesy of HYUNDAI MOTOR CO.
