Schematic Diagram

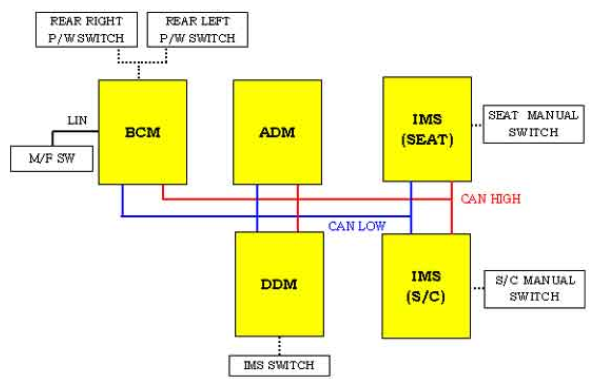

Fig 1: CAN Communication Diagram
G06803454Courtesy of HYUNDAI MOTOR CO.
Fig 2: CAN Communication - Schematic Diagram
G06803455Courtesy of HYUNDAI MOTOR CO.
