Components and Components Location: Components

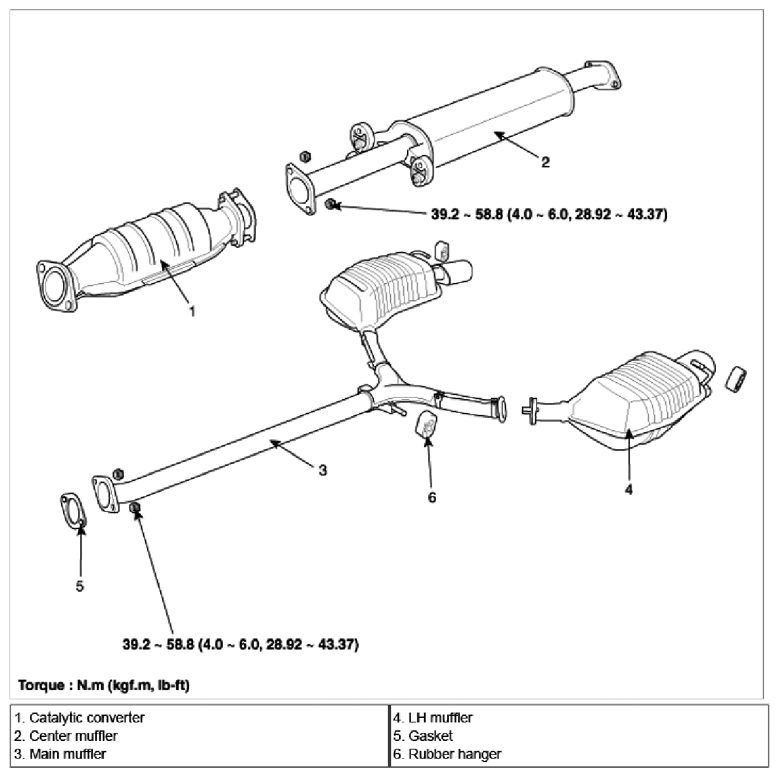

Fig 1: Muffler Replacement Components With Torque Specifications
G06804902Courtesy of HYUNDAI MOTOR CO.
