Components and Components Location: Components

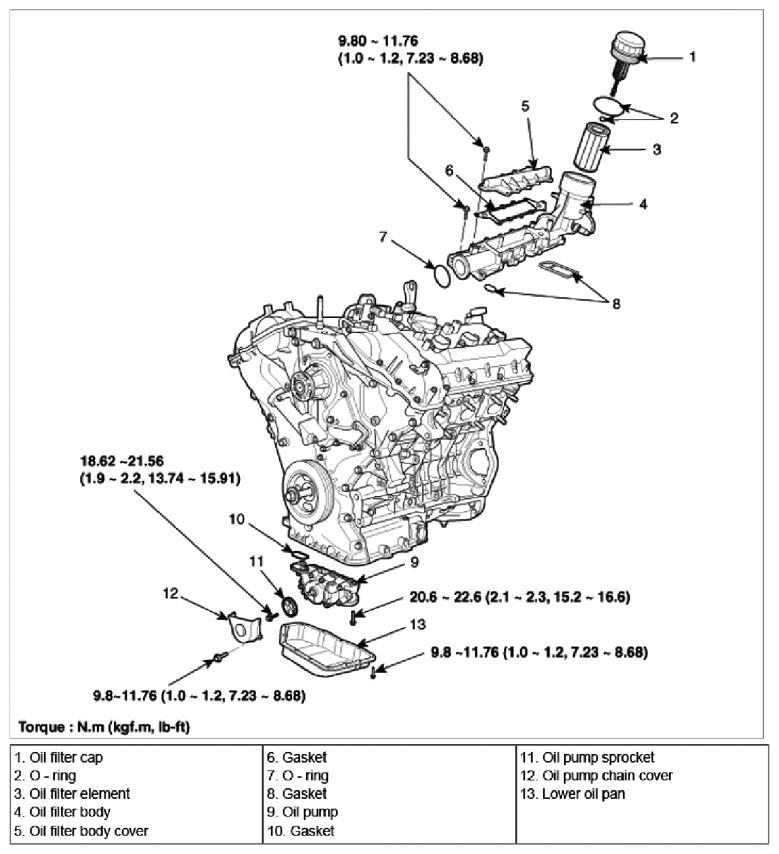

Fig 1: Identifying Lubrication System Components

G06804863

Courtesy of HYUNDAI MOTOR CO.
