Front Door





Replacement

Power Window Switch Replacement
1. Remove the front door trim.

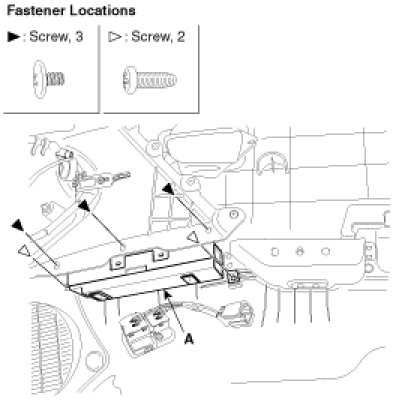

2. Loosen the mounting screws (A).

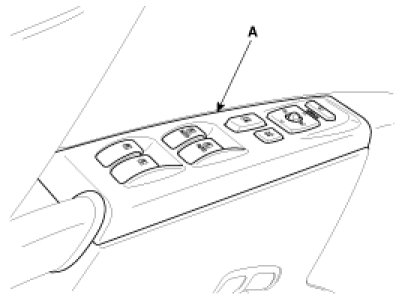

3. Remove the power window switch (A).




4. Installation is the reverse the removal.
