Repair procedures (A4CF2): Installation

Install the control cable assembly to transaxle. (refer to AUTOMATIC TRANSAXLE )
Install the retainer (A) and nuts (B).
Tightening torque:

12-15 Nm (1.2-1.5 kgf.m, 8.7-10.8 lb-ft)

NOTE: In case, install the crush pad and cowl cross bar. (refer to and HEATER UNIT )

Fig 1: Installing Retainer
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever assembly (A).
Tightening torque:

9-14 Nm (0.9-1.4 kgf.m, 8.7-10.8 lb-ft)

Fig 2: Installing Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.

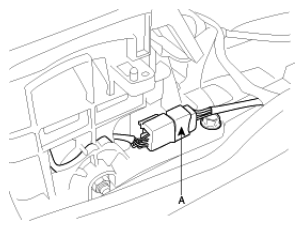

Connect the interlock switch connector (A).

Fig 3: Connecting Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.

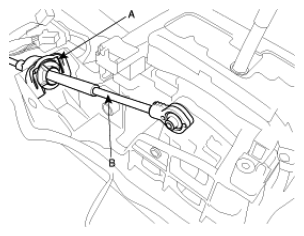

Install the control cable assembly (B) by installing the clamp (A).

Fig 4: Installing Control Cable Assembly
Courtesy of HYUNDAI MOTOR CO.

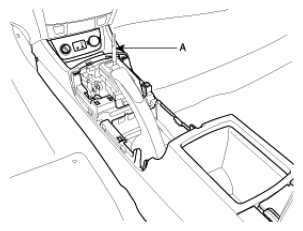

Install the center console. (refer to CONSOLE )

Fig 5: Installing Center Console
Courtesy of HYUNDAI MOTOR CO.

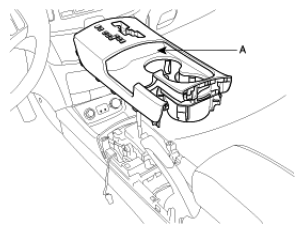

Install the center console cover (A).

Fig 6: Installing Center Console Cover
Courtesy of HYUNDAI MOTOR CO.
Install the shift lever knob (A).

Fig 7: Installing Shift Lever Knob
