Repair procedures (A4CF2): Removal

Remove the shift lever knob (A).

Fig 1: Removing Shift Lever Knob
Courtesy of HYUNDAI MOTOR CO.

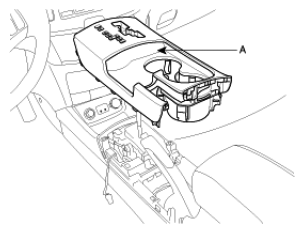

Remove the center console cover (A).

Fig 2: Removing Center Console Cover
Courtesy of HYUNDAI MOTOR CO.

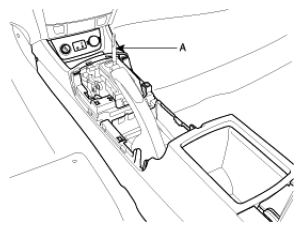

Remove the center console. (refer to CONSOLE )

Fig 3: Removing Center Console
Courtesy of HYUNDAI MOTOR CO.

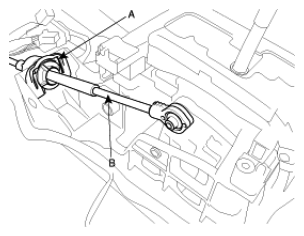

Remove the control cable assembly (B) by removing the clamp (A).

Fig 4: Removing Control Cable Assembly
Courtesy of HYUNDAI MOTOR CO.

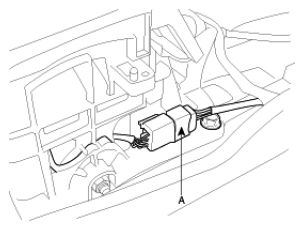

Disconnect the interlock switch connector (A).

Fig 5: Disconnecting Interlock Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the shift lever assembly (A).

Fig 6: Removing Shift Lever Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the retainer (A) and nuts (B).
NOTE: In case, remove the crash pad and cowl cross bar. (refer to CRASH PAD and HEATER UNIT )

Fig 7: Removing Retainer
Courtesy of HYUNDAI MOTOR CO.
Remove the control cable assembly from the transaxle (refer to AUTOMATIC TRANSAXLE ).
Remove the control cable assembly.
