Back View Camera Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk left trim in the trunk. (Refer to TRUNK LID )

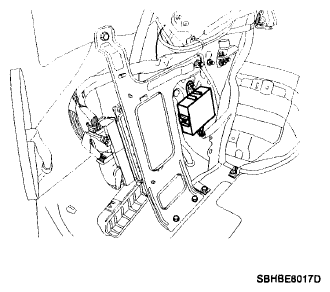

    Fig 1: Identifying Back View Camera Unit
    G06102681Courtesy of HYUNDAI MOTOR CO.
  3. Remove the back view camera unit (A) after removing the nuts (2EA) and connector.
    Fig 2: Identifying Back View Camera Unit
    G06102682Courtesy of HYUNDAI MOTOR CO.
