Monitor Scantool Data

  1. Connect scantool to data link connector (DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "Inhibitor s/w" parameter on the scantool.
  4. Move selector lever from "P" range to "D" range.

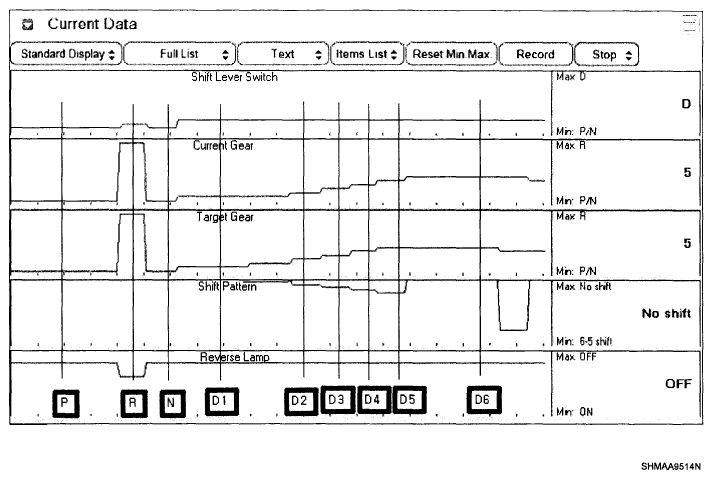

    Fig 1: Scan Tool Display - Working Status Of Inhibitor S/W
    G06106468Courtesy of HYUNDAI MOTOR CO.
  5. Does "Inhibitor s/w" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
