Repair Procedures

Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

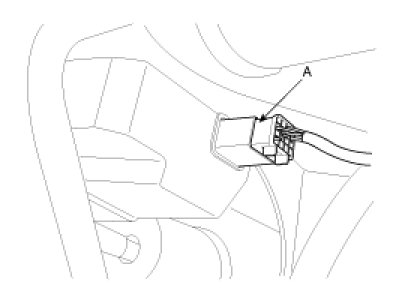

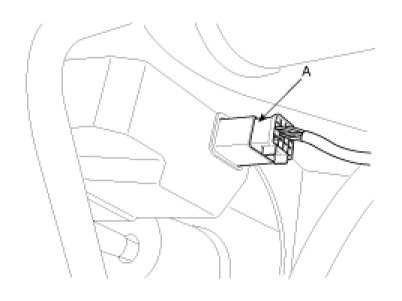

3. Disconnect the electronic steering column lock connector(A).

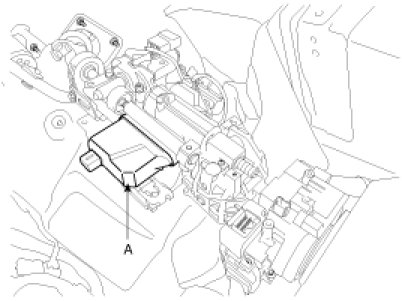

4. Remove the electronic steering column lock(A).






Installation

1. Install the electronic steering column lock.
2. Install the crash pad lower panel.
