Keyless Entry: Service and Repair

Inspection

Front Door Lock Actuator Inspection
1. Remove the front door trim panel.

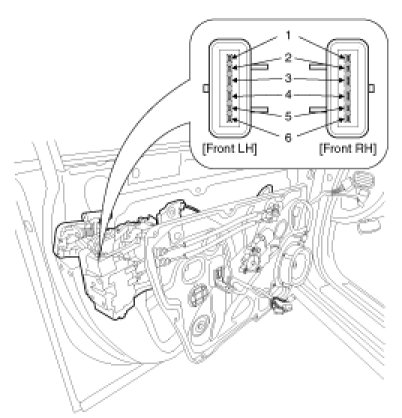

2. Disconnect the 6P connector from the actuator.

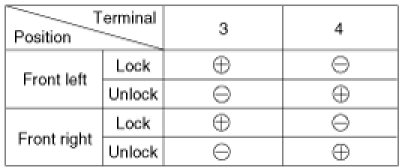

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.





Rear Door Lock Actuator Inspection
1. Remove the rear door trim panel.

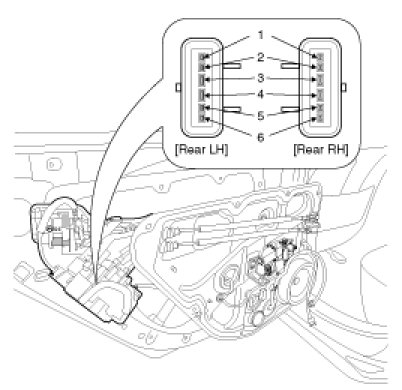

2. Disconnect the 6P connector from the actuator.

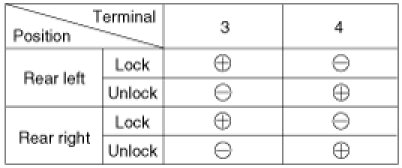

3. Check actuator operation by connecting power and ground according to the table. To prevent damage to the actuator, apply battery voltage only momentarily.
