Crankcase Emission Control System: Components

[2.4 DOHC]

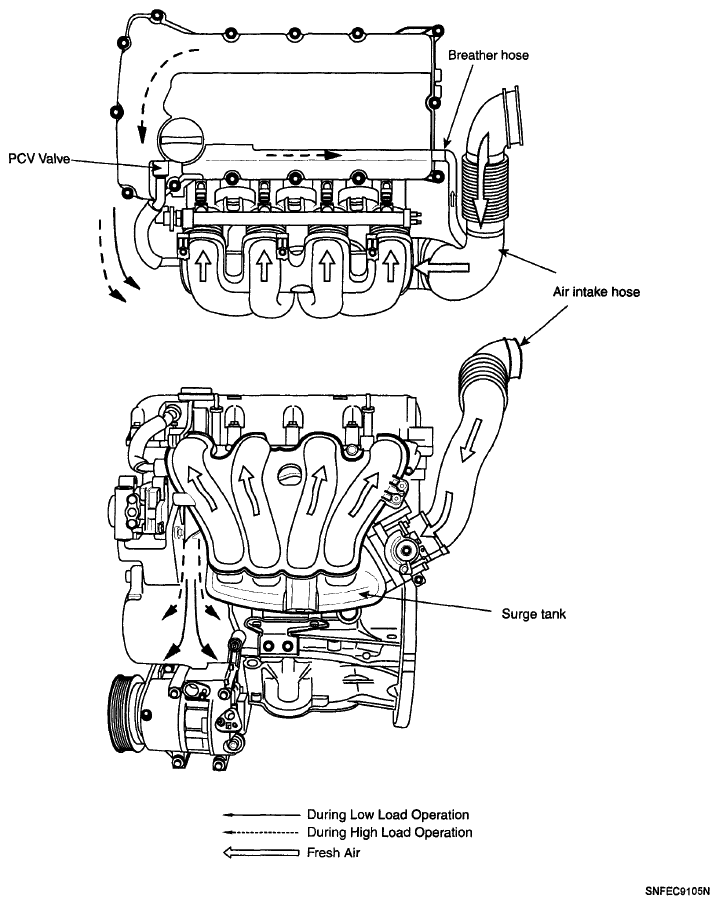

Fig 1: Identifying 2.4 DOHC Crankcase Emission Control System Components
G06108601Courtesy of HYUNDAI MOTOR CO.

[3.3 V6]

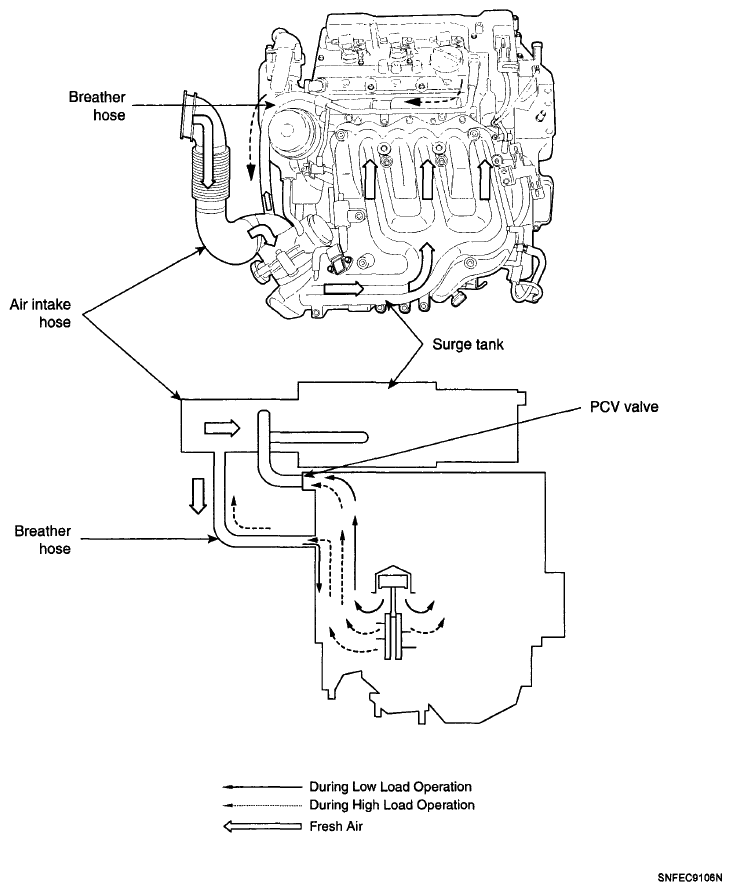

Fig 2: Identifying 3.3 V6 Crankcase Emission Control System Components
G06108602Courtesy of HYUNDAI MOTOR CO.
