Home >> Hyundai >> 2010 >> Sonata V6-3.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Trailing Arm
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

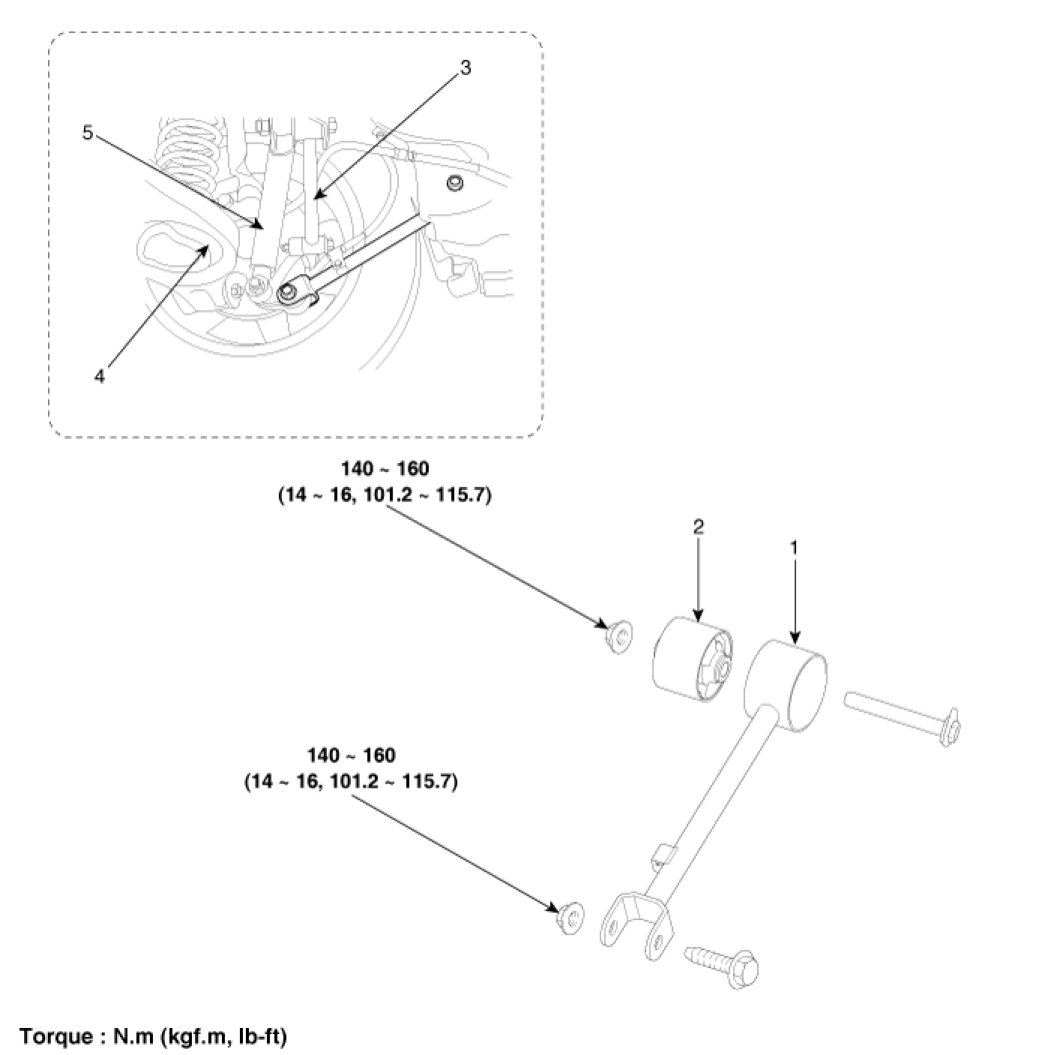

Trailing Arm





Components
