Oil Pump, Engine
Components

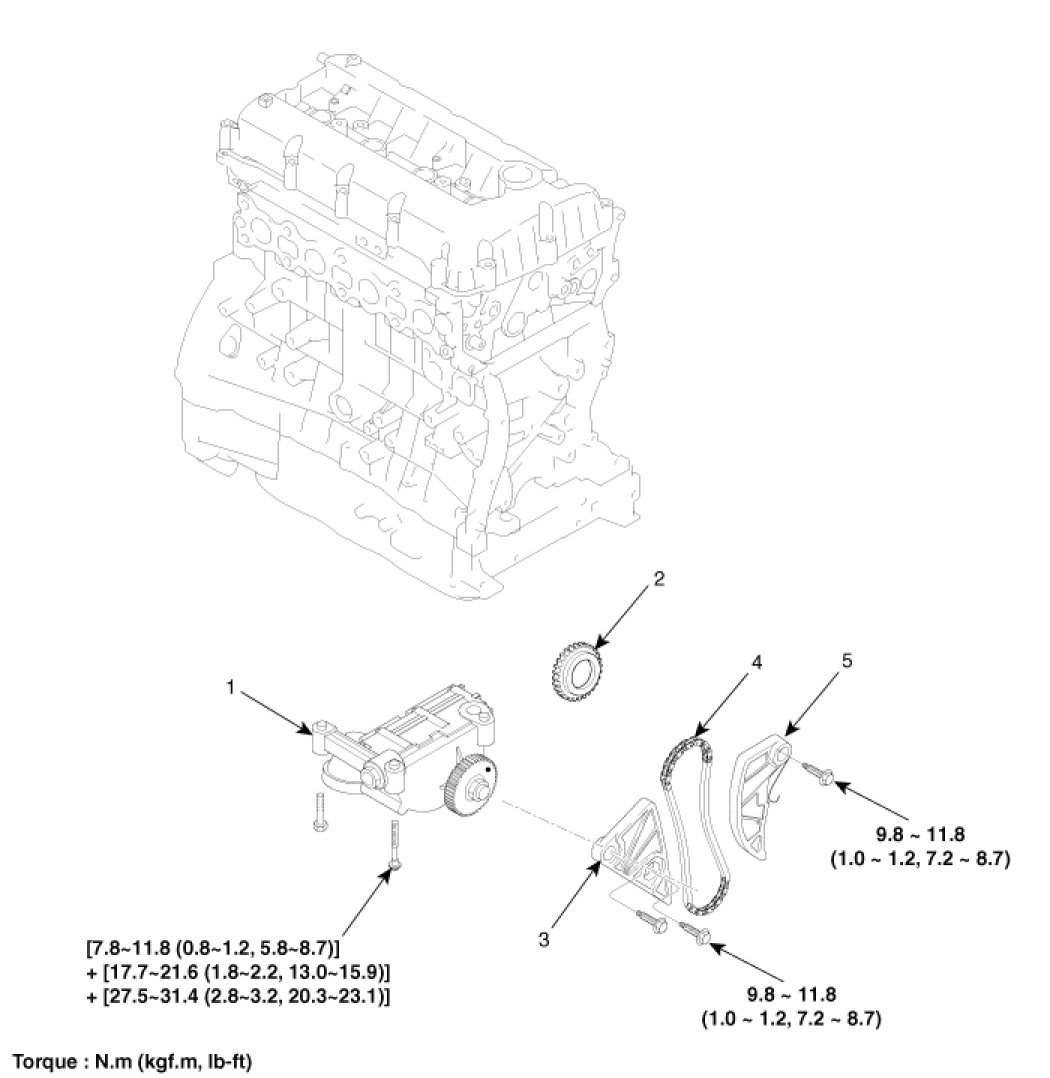

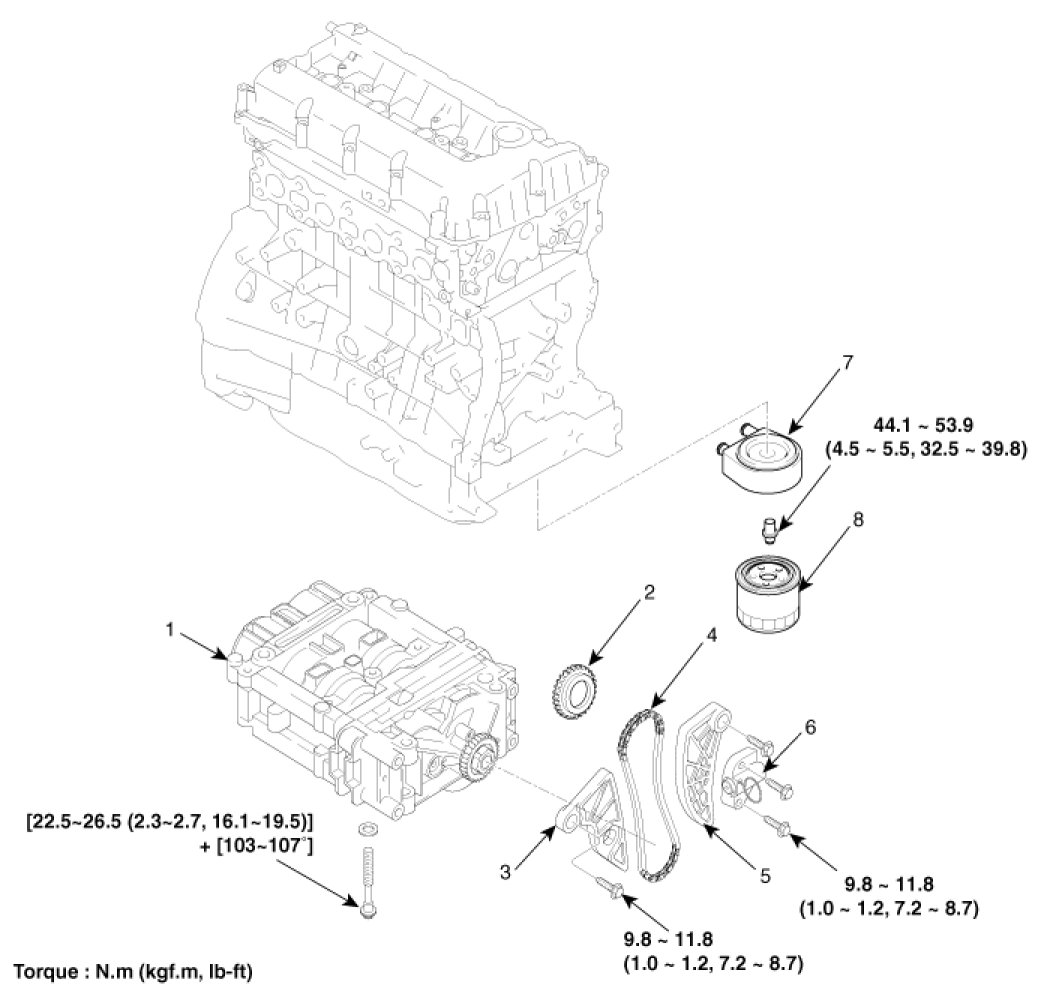

[2.4L Engine only (Balance shaft module type)]
[2.0L Engine only (Oil pump type)]
