Components and Components Location: Components

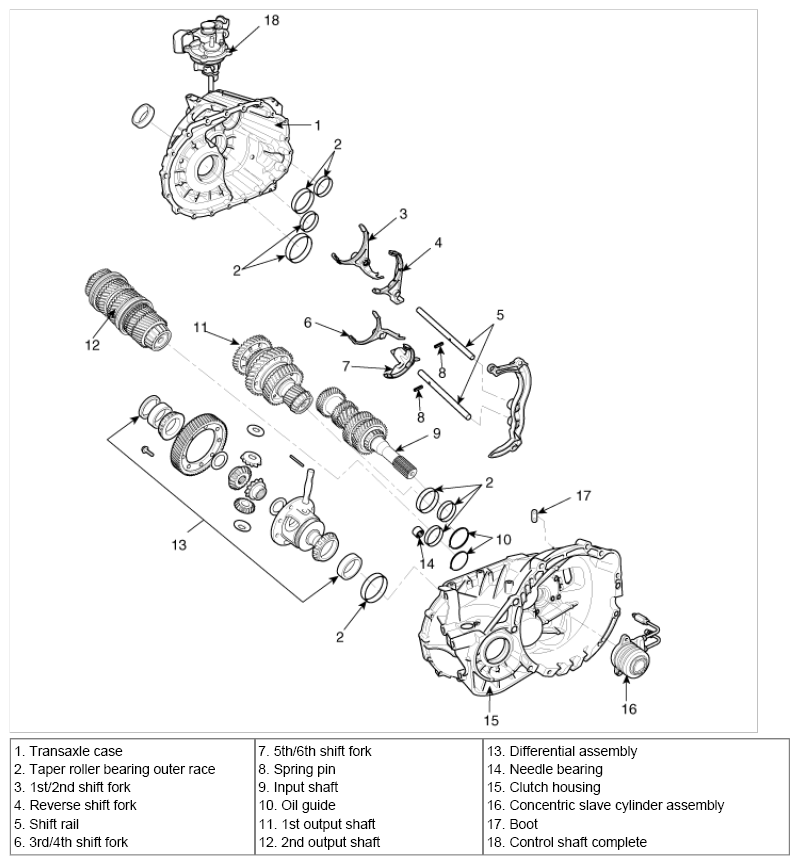

Fig 1: Exploded View Of Manual Transaxle
Courtesy of HYUNDAI MOTOR CO.
