Components and Components Location: Components

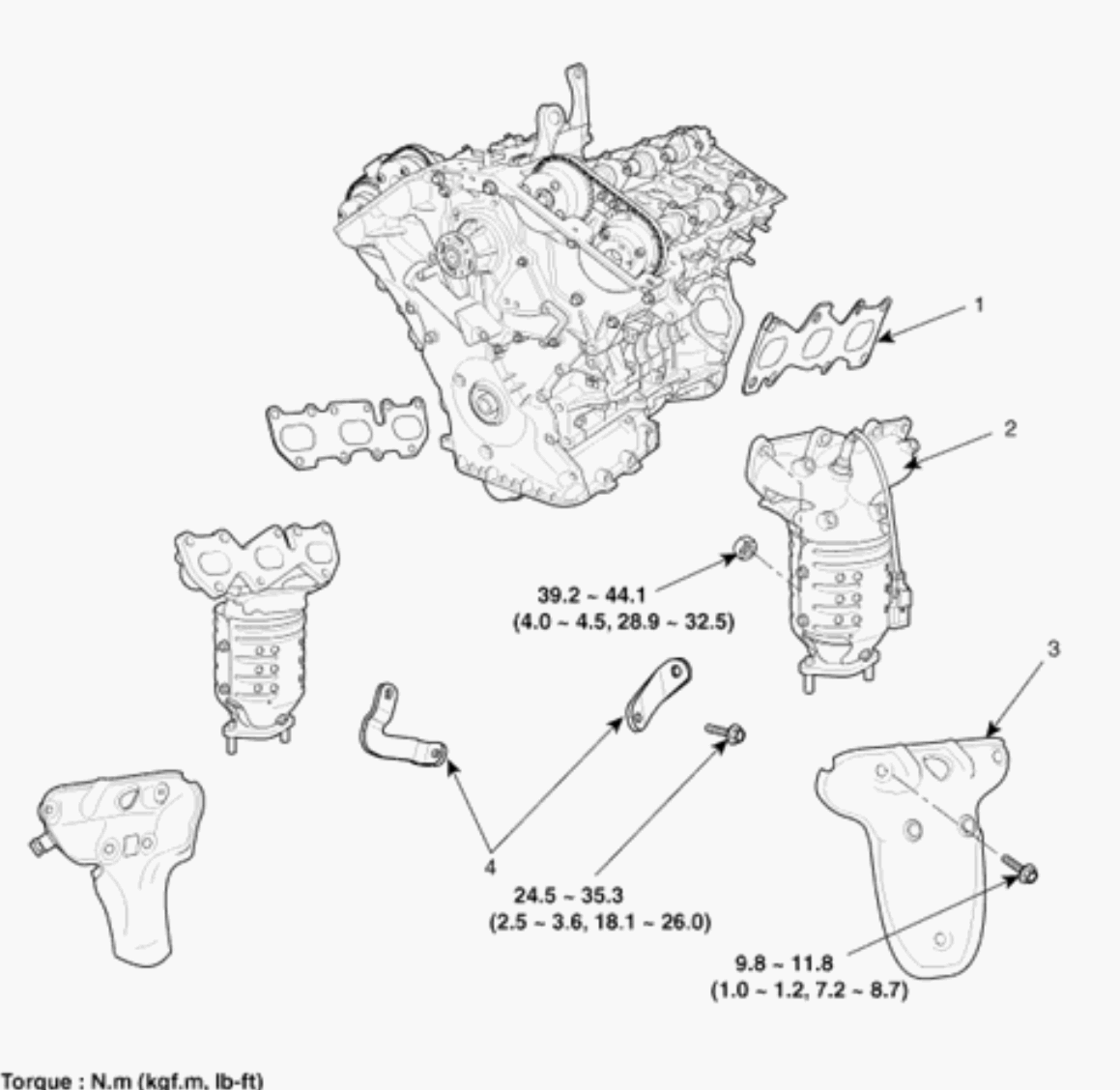

Fig 1: Exhaust Manifold And Catalytic Converter Replacement Components With Torque Specifications
G00510041Courtesy of HYUNDAI MOTOR CO.
CALLOUTS FOR EXHAUST MANIFOLD GRAPHIC

1 Gasket
2 Exhaust manifold
3 Heat protector
4 Exhaust manifold stay
