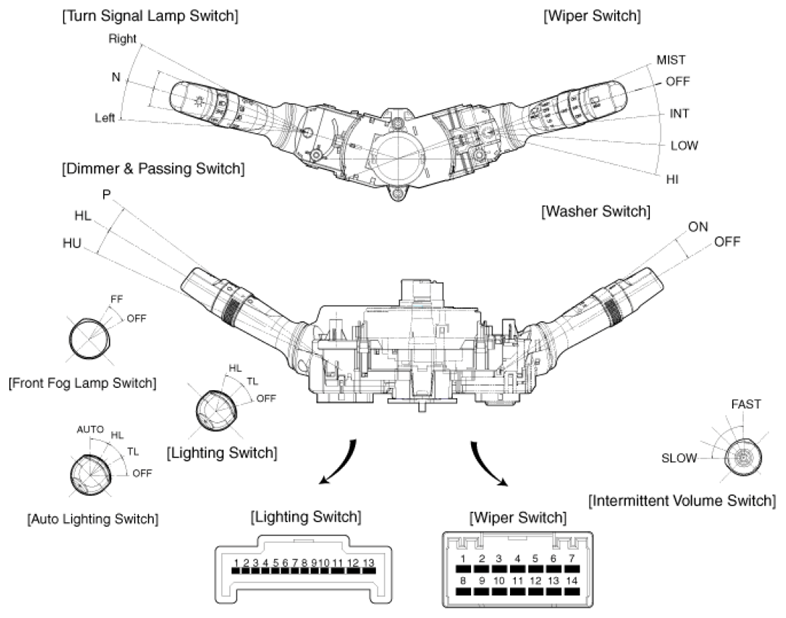

Components and Components Location: Components
WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
CONNECTOR DESCRIPTION
| Connector name | No | Description | Connector name | No | Description |
|---|---|---|---|---|---|
| Lighting (13 pin) | 1 | Lighting switch GND | Wiper & Washer (14 Pin) | 1 | Mist switch |
| 2 | Tail lamp switch | 2 | Wiper parking | ||
| 3 | Auto light switch | 3 | Wiper low speed | ||
| 4 | Head lamp switch | 4 | - | ||
| 5 | Fog lamp switch base | 5 | - | ||
| 6 | Front fog lamp switch | 6 | - | ||
| 7 | - | 7 | - | ||
| 8 | Head lamp low | 8 | Intermittent wiper switch | ||
| 9 | Head lamp high | 9 | Wiper high speed | ||
| 10 | Dimmer switch base | 10 | IGN2 (Front wiper & washer) | ||
| 11 | Turn signal left | 11 | Washer switch | ||
| 12 | Turn signal base | 12 | INT volume base | ||
| 13 | Turn signal right | 13 | INT time | ||
| 14 | - | ||||
