Repair procedures: Removal: Notes

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the steering wheel.
(Refer to the "STEERING COLUMN & SHAFT ")

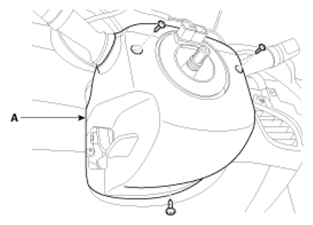

Remove the steering column upper and lower shrouds (A) after removing 3 screws.

Fig 1: Identifying Steering Column Upper
Courtesy of HYUNDAI MOTOR CO.

Fig 2: Identifying Lower Shroud
Courtesy of HYUNDAI MOTOR CO.
Remove the clock spring(A).

Fig 3: Identifying Clock Spring
Courtesy of HYUNDAI MOTOR CO.
Disconnect the lighting switch connector(A) and wiper & washer switch connector(B).

Fig 4: Identifying Lighting Switch Connector
Courtesy of HYUNDAI MOTOR CO.

Fig 5: Identifying Washer Switch Connector
Courtesy of HYUNDAI MOTOR CO.
If it is necessary to remove. The wiper & washer switch (A) only, release the lock of wiper switch using tool without removing the steering wheel and the clock spring.

Fig 6: Identifying Wiper & Washer Switch
Courtesy of HYUNDAI MOTOR CO.
Remove the multifunction switch assembly(A) with loosening 2 screws.

Fig 7: Identifying Multifunction Switch Assembly
