Repair Procedures: Replacement

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Using the screwdriver, remove the center garnish (A).

Fig 1: Identifying Center Garnish
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Identifying Console Upper Cover (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Remove the center console assembly.
(Refer to CONSOLE
Loosen the mounting nut and clip remove the extension cover (A).

Fig 4: Identifying Extension Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the side cover (A).

Fig 5: Identifying Side Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the fuse box cover (A).

Fig 6: Identifying Fuse Box Cover
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screw and then remove the crash pad lower cover (B).

Fig 7: Identifying Crash Pad Lower Cover
Courtesy of HYUNDAI MOTOR CO.
Disconnect the diagnosis connector (A).

Fig 8: Identifying Diagnosis Connector
Courtesy of HYUNDAI MOTOR CO.
After loosening the mounting bolts, then remove the reinforce panel (A).

Fig 9: Identifying Reinforce Panel
Courtesy of HYUNDAI MOTOR CO.
Remove the shower duct (A).

Fig 10: Identifying Shower Duct
Courtesy of HYUNDAI MOTOR CO.

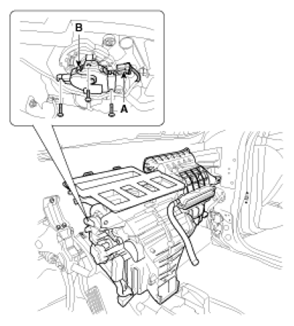

Disconnect the temperature control actuator connector (A).
Loosen the mounting screw and then remove the temperature control actuator (B).

Fig 11: Identifying Temperature Control Actuator Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse order of removal.
