Repair Procedures: Replacement

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Using the screwdriver, remove the center garnish (A).
    Fig 1: Identifying Center Garnish
    G07257032Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the mounting remove the console upper cover (A).
    Fig 2: Identifying Console Upper Cover (1 Of 2)
    G07257033Courtesy of HYUNDAI MOTOR CO.
    Fig 3: Identifying Console Upper Cover (2 Of 2)
    G07257034Courtesy of HYUNDAI MOTOR CO.
  4. Remove the center console assembly.

    (Refer to CONSOLE ) )

  5. Loosen the mounting nut and clip remove the extension cover (A).
    Fig 4: Identifying Extension Cover
    G07257035Courtesy of HYUNDAI MOTOR CO.
  6. Remove the side cover (A).
    Fig 5: Identifying Side Cover
    G07257036Courtesy of HYUNDAI MOTOR CO.
  7. Disconnect the fuse box cover (A).
    Fig 6: Identifying Fuse Box Cover
    G07257037Courtesy of HYUNDAI MOTOR CO.
  8. Loosen the mounting screw and then remove the crash pad lower cover (B).
    Fig 7: Identifying Crash Pad Lower Cover
    G07257038Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the diagnosis connector (A).
    Fig 8: Identifying Diagnosis Connector
    G07257039Courtesy of HYUNDAI MOTOR CO.
  10. After loosening the mounting bolts, then remove the reinforce panel (A).
    Fig 9: Identifying Reinforce Panel
    G07257040Courtesy of HYUNDAI MOTOR CO.
  11. Remove the shower duct (A).
    Fig 10: Identifying Shower Duct
    G07257041Courtesy of HYUNDAI MOTOR CO.

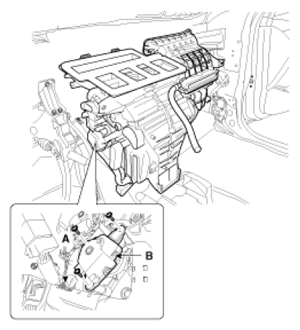

  12. Disconnect the temperature control actuator connector (A)
  13. Loosen the mounting screw and then remove the temperature control actuator (B).
    Fig 11: Identifying Temperature Control Actuator Connector
    G07257042Courtesy of HYUNDAI MOTOR CO.
  14. Remove the side cover (A).
    Fig 12: Identifying Side Cover
    G07257043Courtesy of HYUNDAI MOTOR CO.
  15. Loosen the mounting nut and clip remove the extension cover (A)
    Fig 13: Identifying Extension Cover
    G07257044Courtesy of HYUNDAI MOTOR CO.

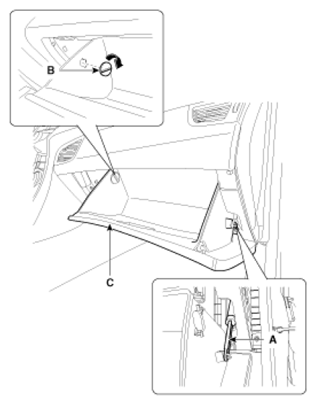

  16. Disconnect the guide (B), from the glove box (C) and then remove the glove box left (A).
    Fig 14: Identifying Glove Box Left
    G07257045Courtesy of HYUNDAI MOTOR CO.

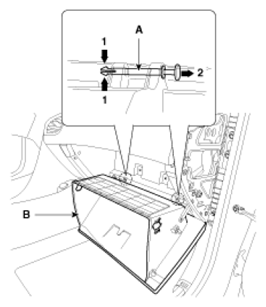

  17. Disconnect the pin (A) and then remove the glove box (B).
    Fig 15: Identifying Pin
    G07257046Courtesy of HYUNDAI MOTOR CO.
  18. Loosen the mounting screw, and then remove the crash pad panel (A).
    Fig 16: Identifying Crash Pad Panel
    G07257047Courtesy of HYUNDAI MOTOR CO.
  19. Loosen the mounting bolts and screws and then remove the glove box housing (A).
    Fig 17: Identifying Glove Box Housing
    G07257048Courtesy of HYUNDAI MOTOR CO.
  20. Remove the shower duct (A).
    Fig 18: Identifying Shower Duct
    G07257049Courtesy of HYUNDAI MOTOR CO.

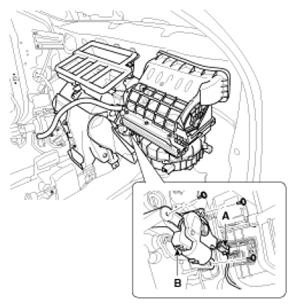

  21. Disconnect the temperature control actuator connector (A)
  22. Loosen the mounting screw and then remove the temperature control actuator (B).
    Fig 19: Identifying Temperature Control Actuator Connector
    G07257050Courtesy of HYUNDAI MOTOR CO.
  23. Installation is the reverse order of removal.
