Components and Components Location: Components

WARNING: This page is about a different car, the 2011 Hyundai Elantra. However, it is still accessible from the selected car via links, so may be relevant.

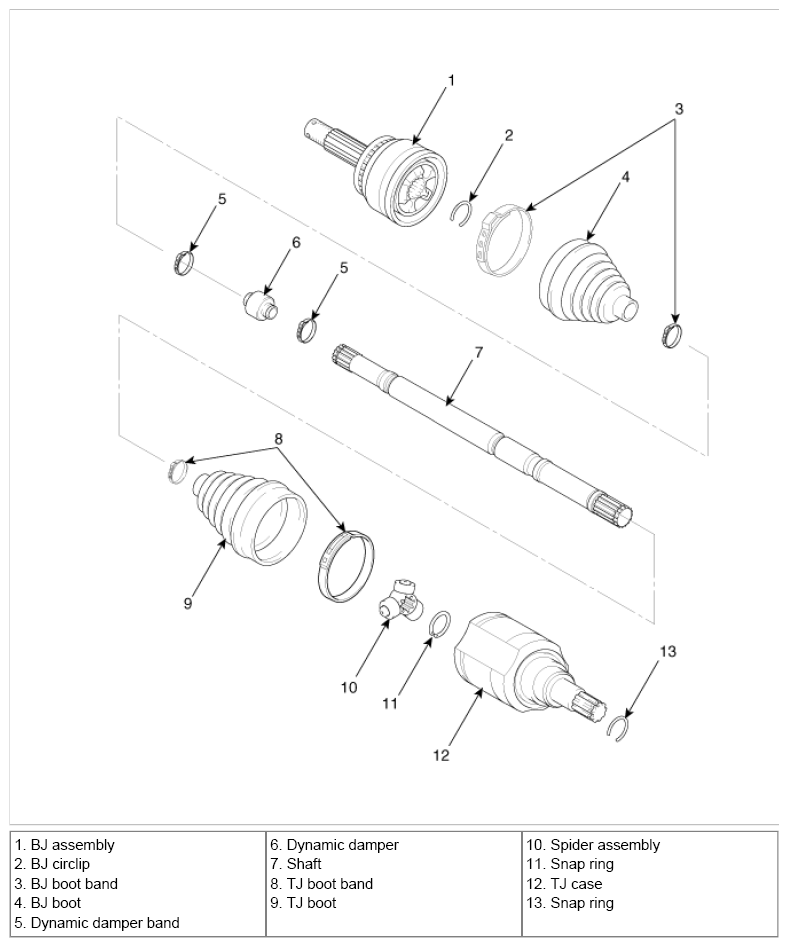

Fig 1: Identifying Front Driveshaft Components
G07264370Courtesy of HYUNDAI MOTOR CO.
