Components and Components Location: Components

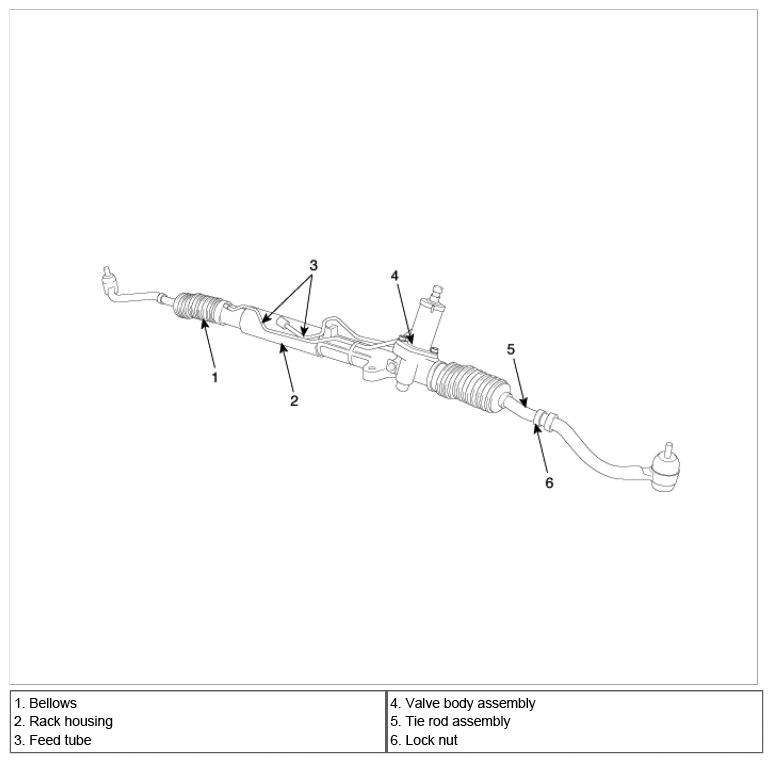

Fig 1: Identifying Hydraulic Power Steering System Components
G06801793Courtesy of HYUNDAI MOTOR CO.
