Repair Procedures: Inspection

  1. Remove the ESC OFF switch from the switch panel on the crash pad of the driver's side.

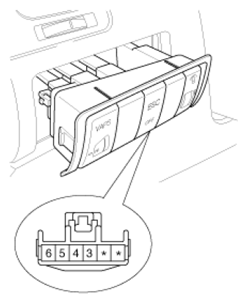

    Fig 1: Identifying ESC OFF Switch Connector Terminals
    G06805390Courtesy of HYUNDAI MOTOR CO.
  2. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: ESC OFF Switch Continuity Chart
    G06805391Courtesy of HYUNDAI MOTOR CO.
