Relay Box: Application and ID

Fuse & Relay Information

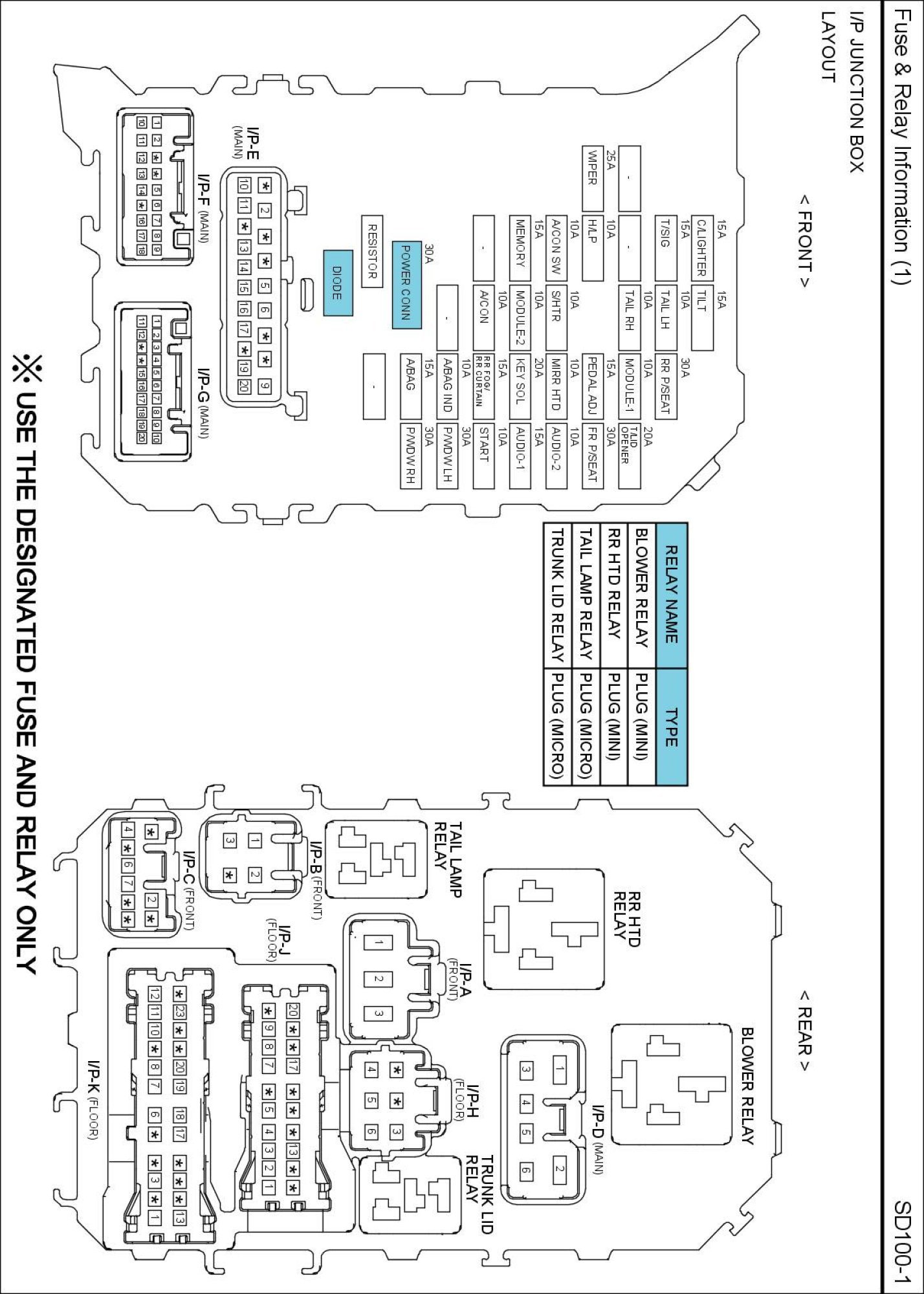

I/P Junction Box View:

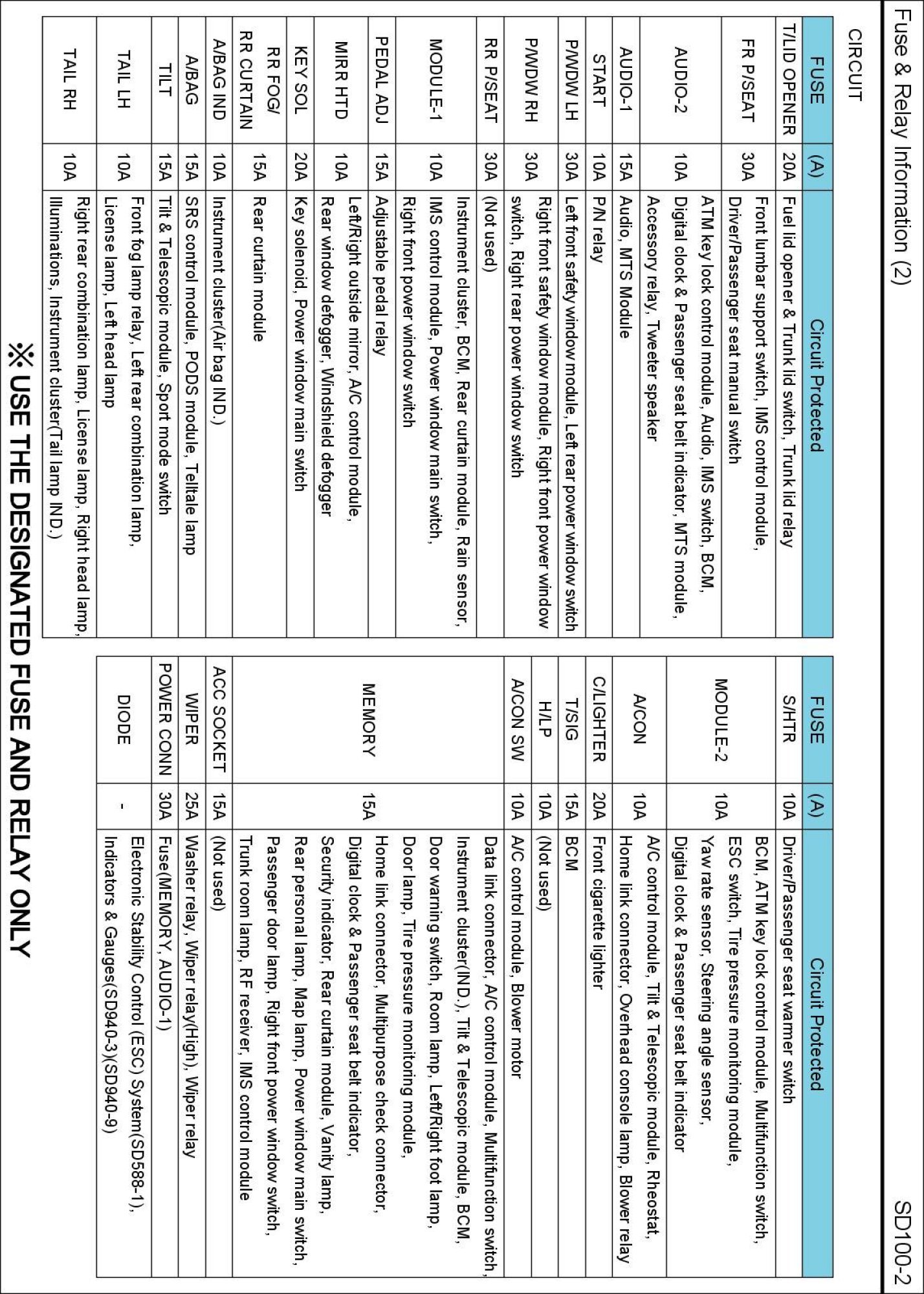

I/P Junction Box Circuit Details:

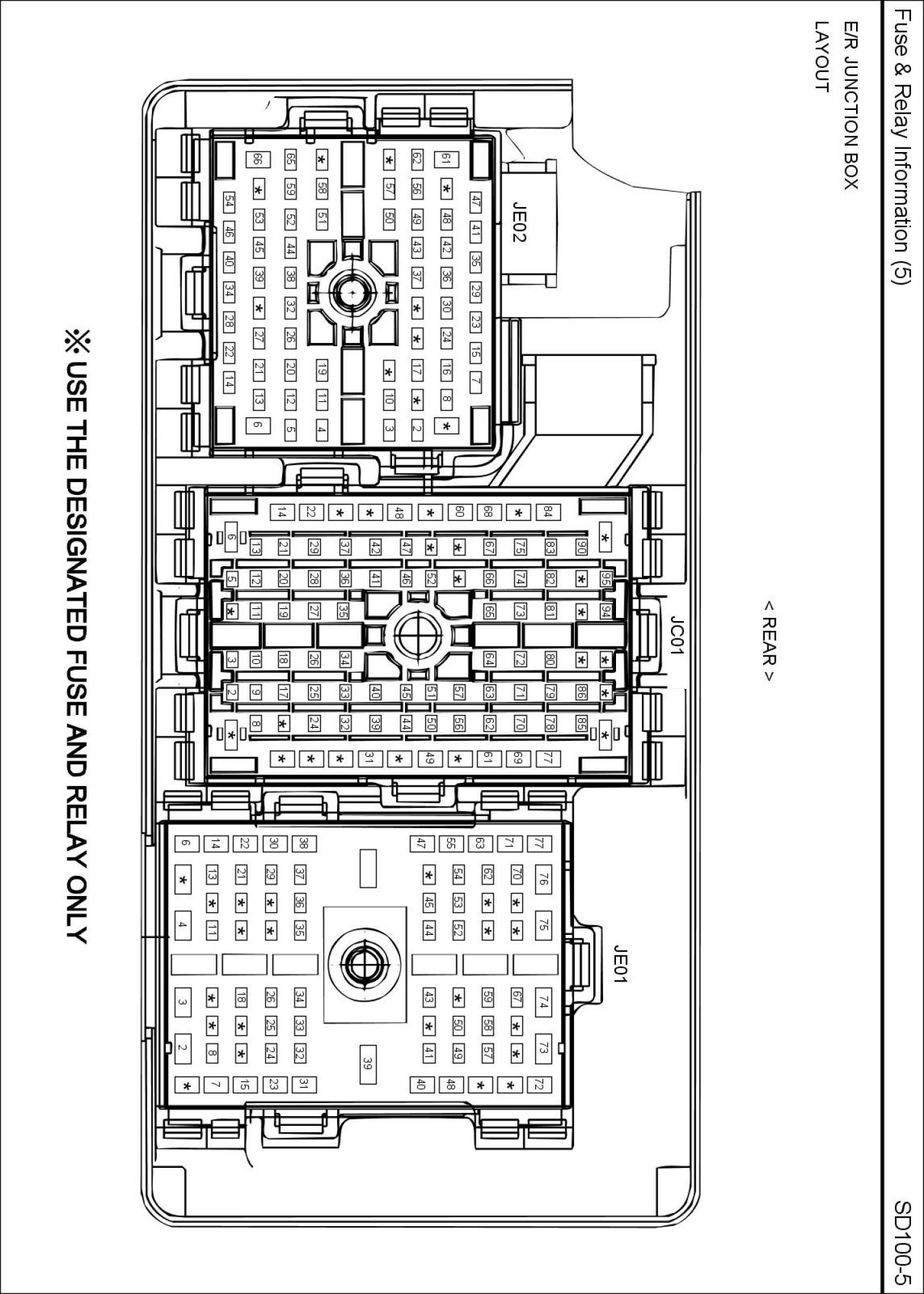

E/R Junction Box View:




E/R Junction Box Circuit Details:




E/R Junction Box View:




E/R Junction Box View:

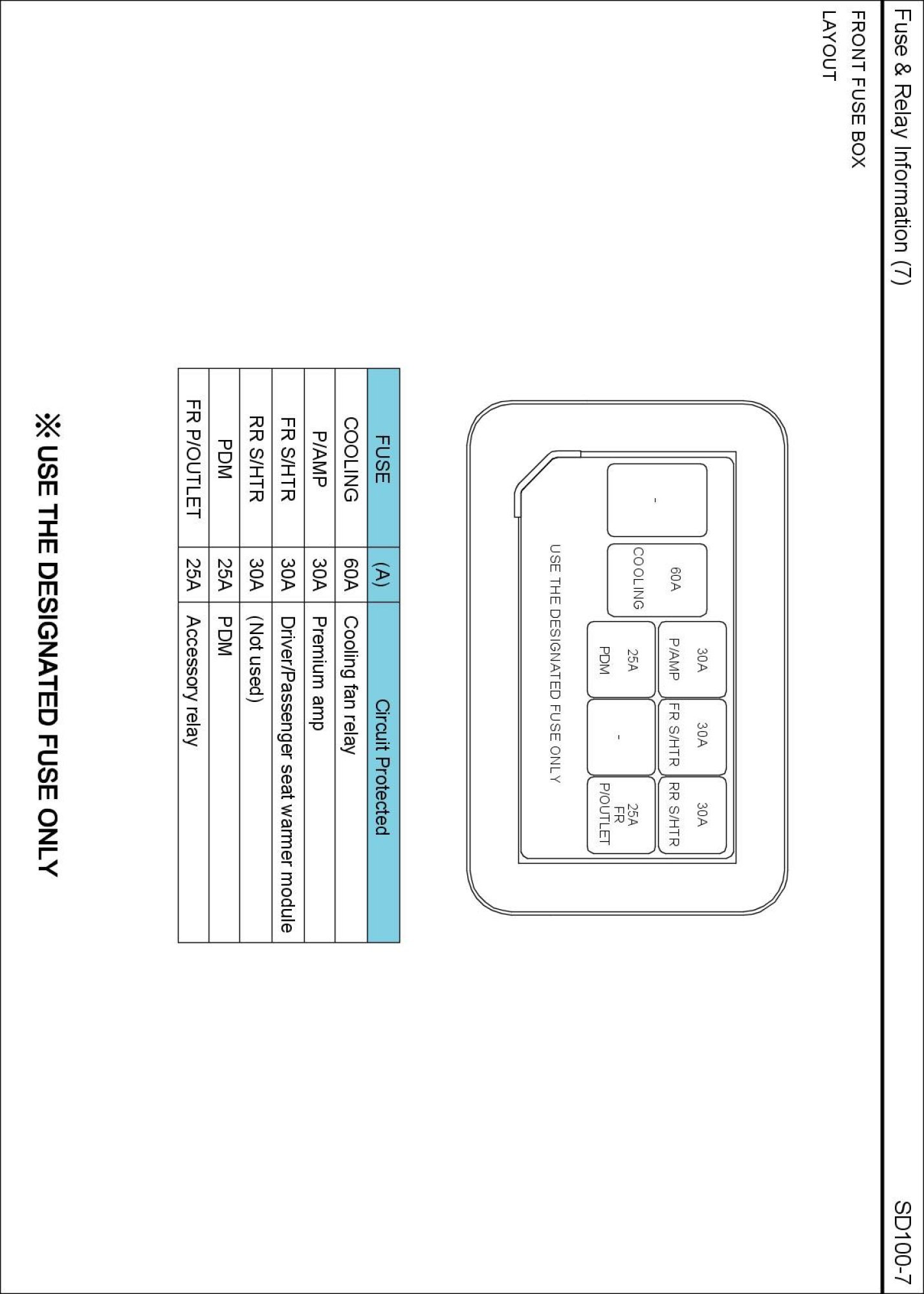

Front Fuse Box View:
