Repair Procedures: Installation

Installation is the reverse of removal.
NOTE:
- Make sure vehicle does not roll before setting room side shift lever and T/M side manual control lever to "N" position.

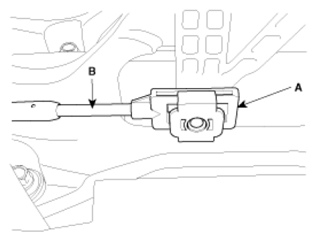

- Install the guide member (A) of the select cable (B).

  Fig 1: Identifying Guide Member
  Courtesy of HYUNDAI MOTOR CO.

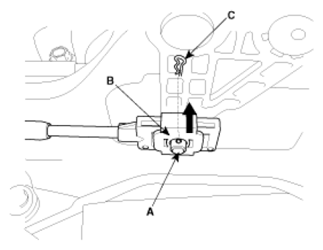

- Adjust the slide clip (B) to fit it into the select lever pin (A) and install the snap pin (C).

  Fig 2: Identifying Select Lever Pin
  Courtesy of HYUNDAI MOTOR CO.
