Components and Components Location: Components

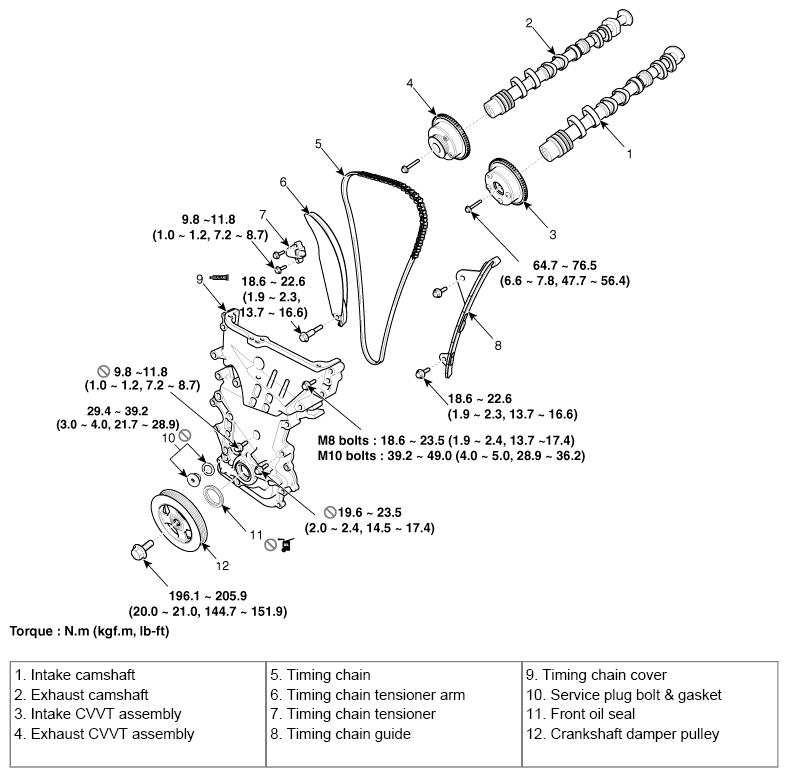

Fig 1: Timing Chain Replacement Components With Torque Specifications

G07263576
