Components (1)

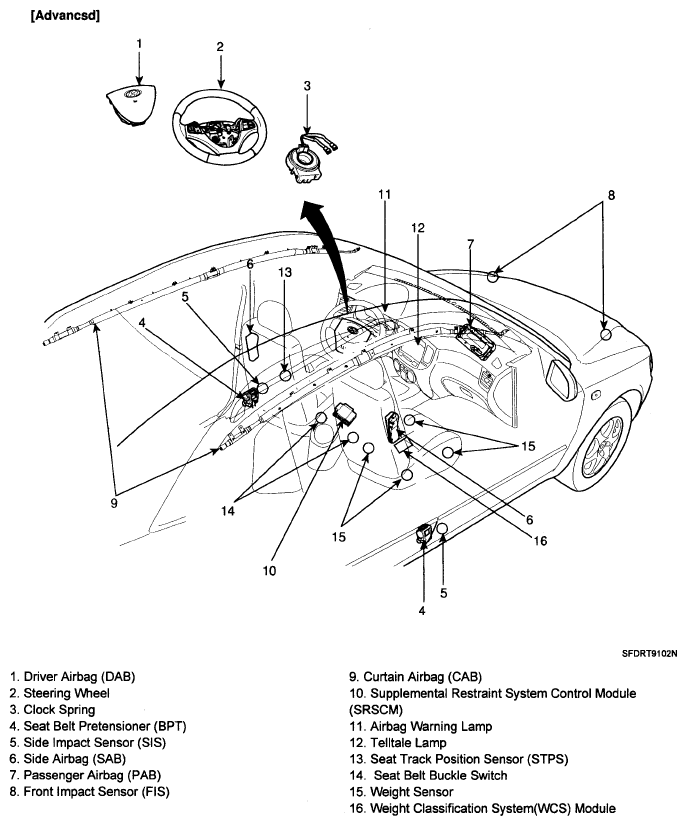

Fig 1: Identifying Restraint Components (1 Of 2)
G06144563Courtesy of HYUNDAI MOTOR CO.

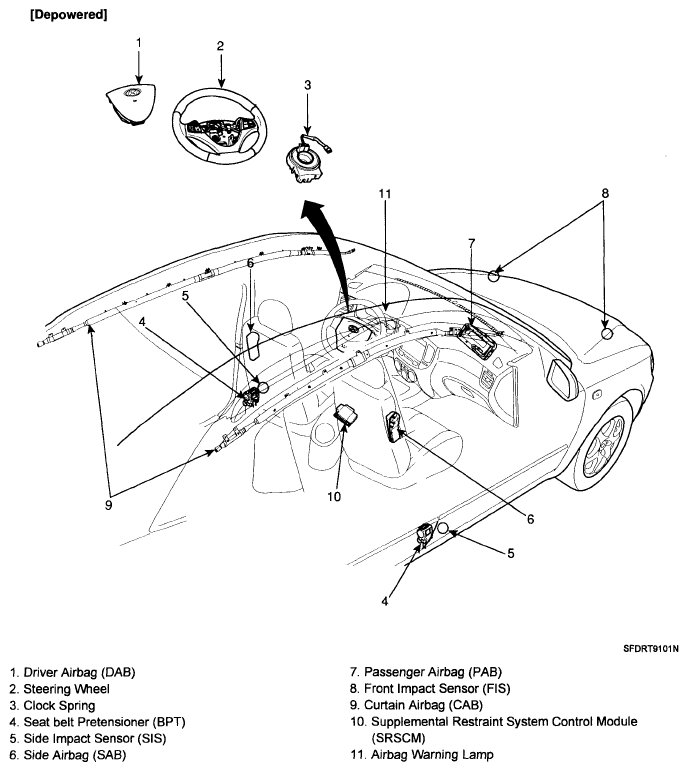

Fig 2: Identifying Restraint Components (2 Of 2)
G06144564Courtesy of HYUNDAI MOTOR CO.
