Removal and Installation

  1. Disconnect the battery (-) terminal.
  2. Disconnect the cruise control main switch connector.
  3. Remove the air-bag module from the steering wheel. (Refer to REMOVAL )
  4. Remove the cruise control switch (A) by loosening the screws.

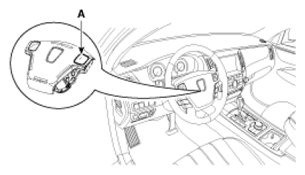

    Fig 1: Identifying Cruise Control Switch
    G07309107Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
