Antenna Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. Select the "IPM + PIC".
  3. After IG ON, select the "PIC ANTENNA STATUS CHECK".

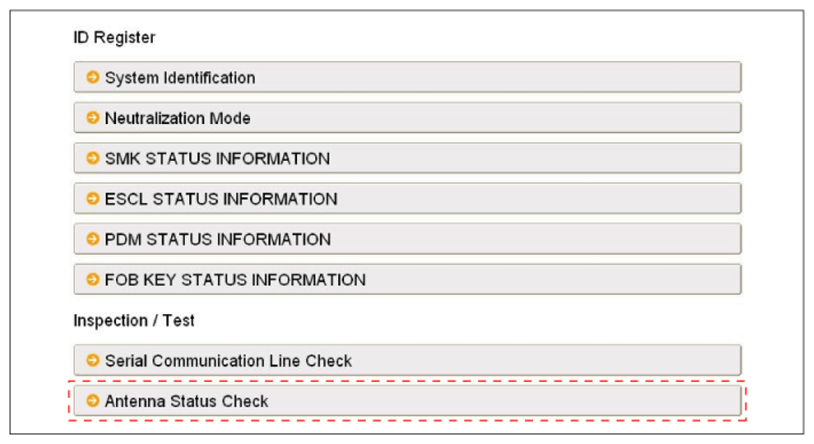

    Fig 1: selecting PIC Antenna Status Check
    G07312623Courtesy of HYUNDAI MOTOR CO.
  4. Set the smart key near the related antenna and operate it with a scanner.

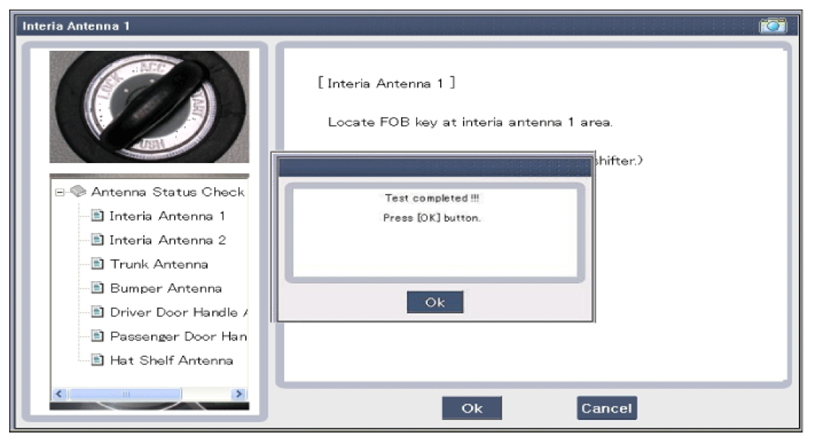

    Fig 2: Display Interia Antenna 1
    G07312624Courtesy of HYUNDAI MOTOR CO.
  5. If the smart key runs normal, the related antenna, smart key(transmission, reception)and exterior receiver are normal.
  6. Antenna status
    1. INTERIOR ANTENNA 1
    2. INTERIOR ANTENNA 2
    3. BUMPER/TRUNK ANTENNA
    4. DRV_DR ANTENNA
    5. AST_DR ANTENNA
    6. REAR PACKAGE TRAY ANTENNA
