Steering Remote Control Switch LH (DOWN)

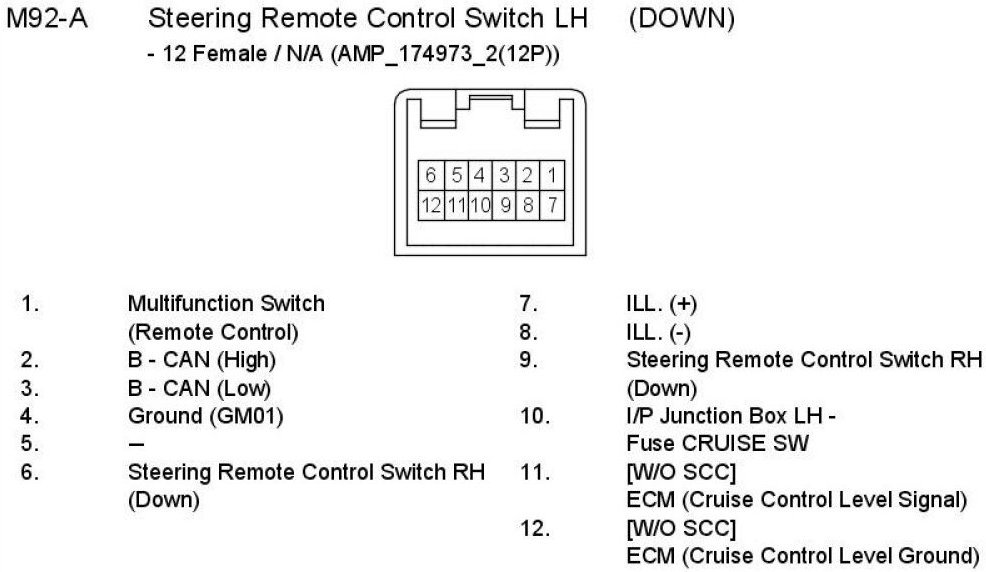

M92-A Steering Remote Control Switch LH (DOWN):

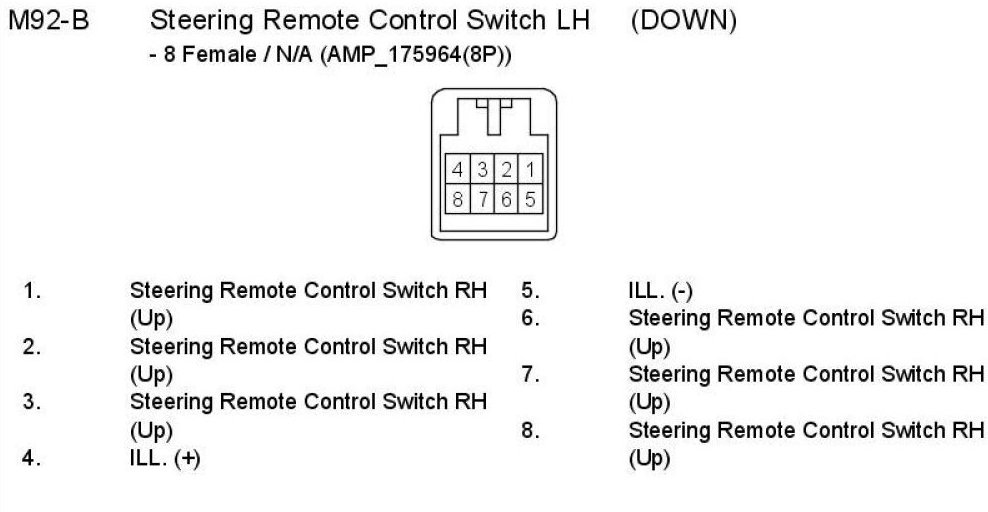

M92-B Steering Remote Control Switch LH (DOWN):
