Rear Wheel Speed Sensor: Components

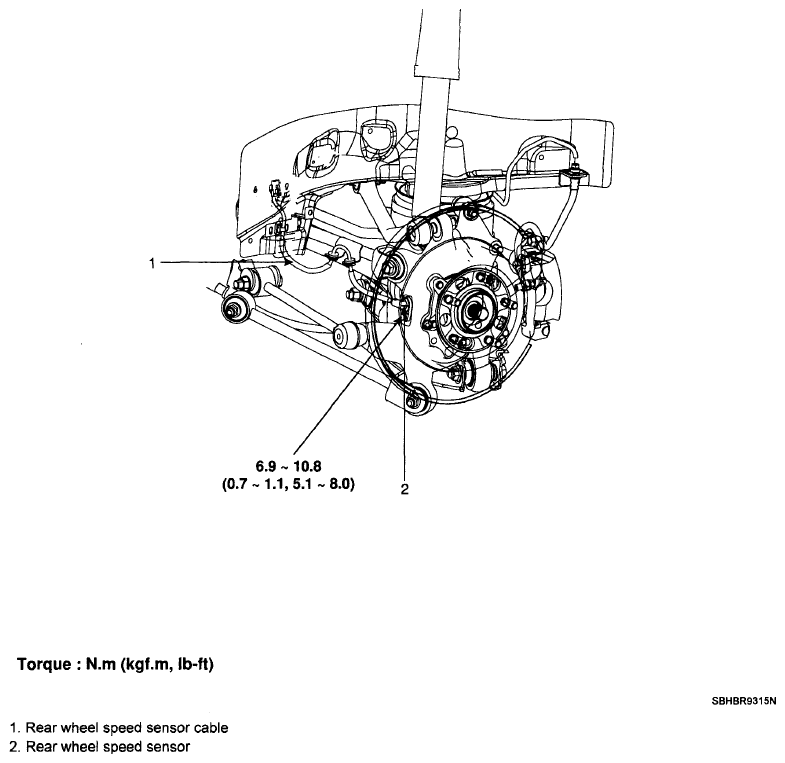

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications
G06101261Courtesy of HYUNDAI MOTOR CO.
