Engine Control System (Fuel System (G8BA - GSL 4.6L))
>>
CVVT Oil Control Valve (OCV)
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

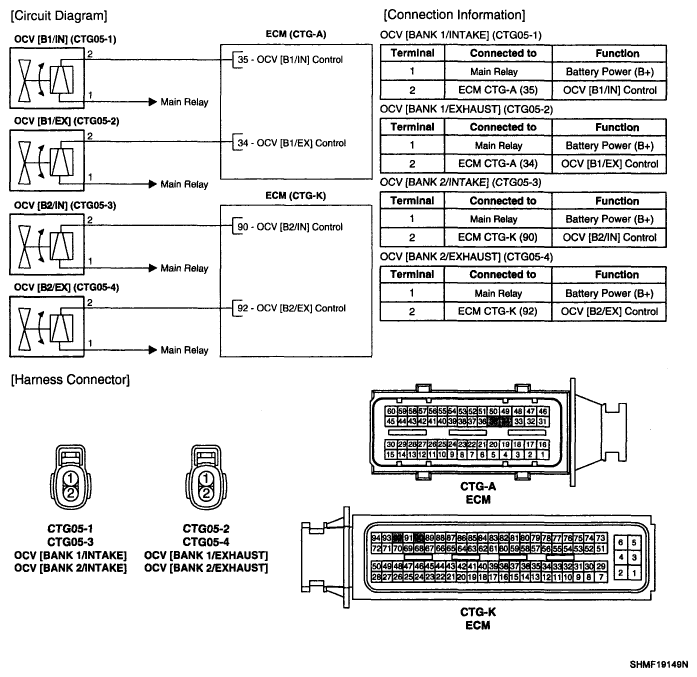

Fig 1: CVVT Oil Control Valve Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
