Circuit Diagram (1)

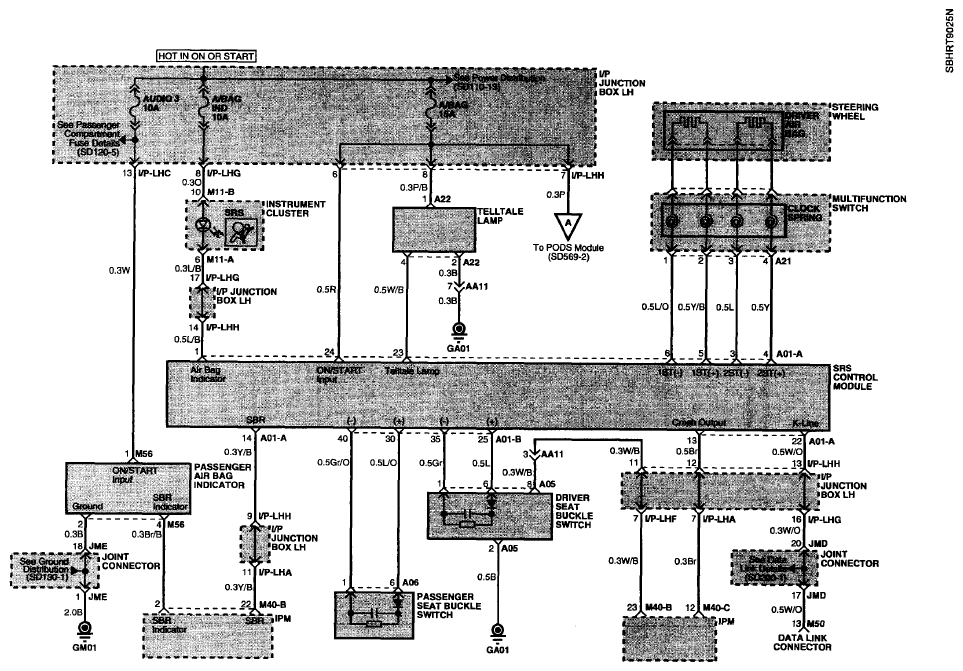

Fig 1: SRSCM - Circuit Diagram (1 Of 3)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
