Genesis Coupe 2.0T R-Spec
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Button Engine Start System
>>
Components and Component Locations
>>
Component Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Location

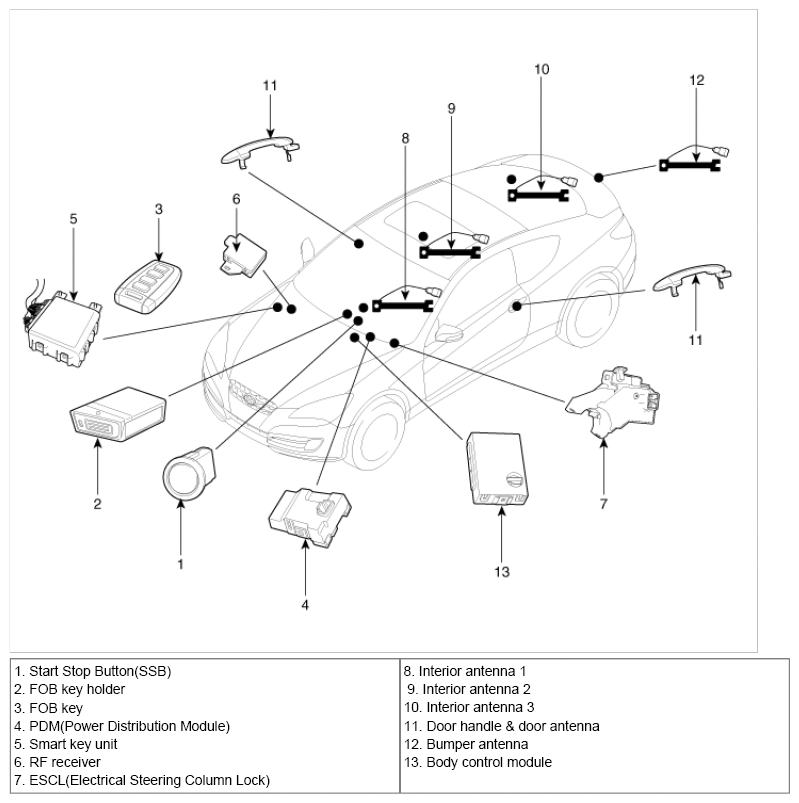

Fig 1: Locating Button Engine Start System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
