Components Location

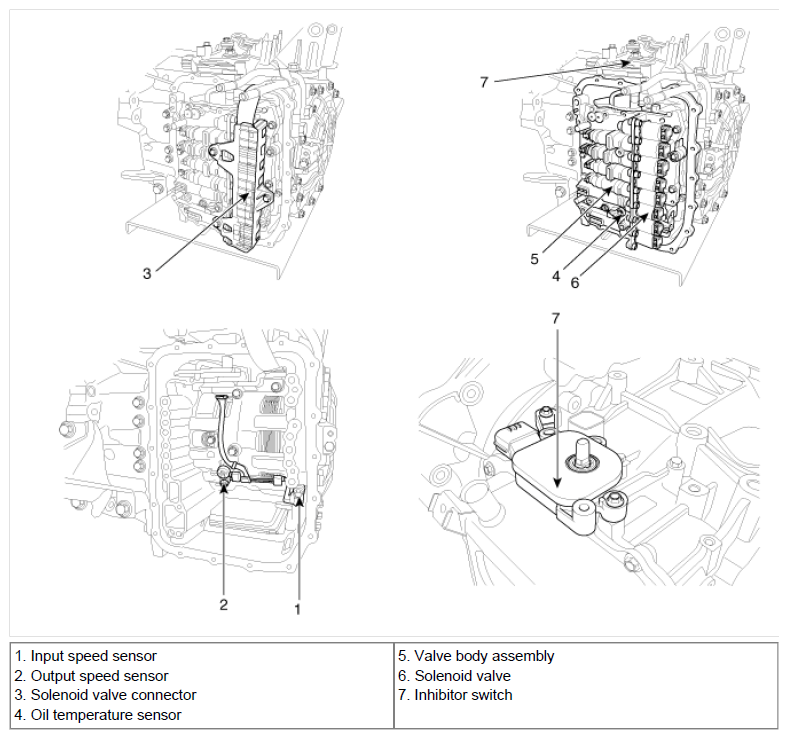

Fig 1: Identifying Automatic Transaxle Control System Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
