Heater Control Unit Replacement

  1. Remove the center facia panel.
  2. After loosening the heater control mounting screw, remove the heater control unit (A).
    Fig 1: Identifying Heater Control Unit
    G06844550Courtesy of HYUNDAI MOTOR CO.

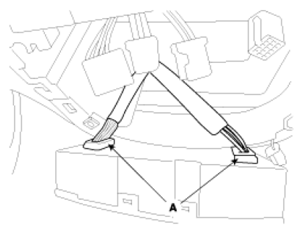

  3. Disconnect the connector (A).
    Fig 2: Identifying Connectors
    G06844551Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
