Repair procedures: Removal: Notes

Disconnect the (-) terminal from the battery.
Lift up the vehicle.
Remove the front muffler. (Refer to "REMOVAL " in EM group)
Remove the propeller shaft bolts.(A-4ea)
Tightening torque :

49.0~68.6N.m (5.0~7.0kgf.m, 36.2~50.6lb-ft)

CAUTION: Install the propeller shaft to be near runout marking (Transfer assembly 1ea, Propeller shaft 1ea) each other.

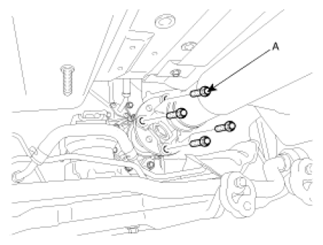

Fig 1: Identifying Propeller Shaft Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the right driveshaft (passanger side) from the transfer case. (Refer to Driveshaft Assembly . )
Remove the transfer case up and down mounting bolt (A, B) after removing the bracket mounting bolt (C).
Tightening torque :

(A, B) 60.8~65.7N.m (6.2~6.7kgf.m, 44.8~48.5lb-ft)

(C) 46.1~50.0N.m (4.7~5.1kgf.m, 34.0~36.9lb-ft)

[Gasoline 2.4]

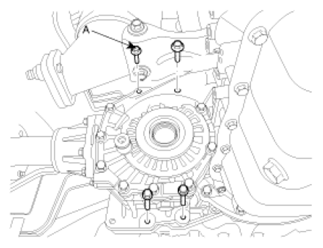

Fig 2: Identifying Transfer Case Up Mounting Bolts (Gasoline 2.4)
Courtesy of HYUNDAI MOTOR CO.

[Gasoline 3.5]

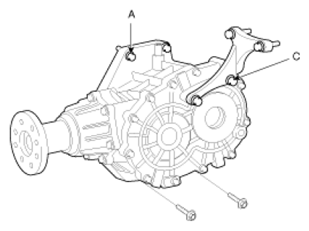

Fig 3: Identifying Transfer Case Up And Bracket Mounting Bolt (Gasoline 3.5)
Courtesy of HYUNDAI MOTOR CO.

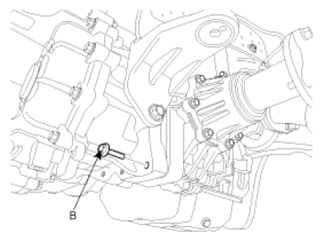

Fig 4: Identifying Transfer Case Down Mounting Bolt (Gasoline 3.5)
Courtesy of HYUNDAI MOTOR CO.
Remove the transfer case with the lever after supporting the transfer case with a jack.
