Engine Oil Control Valve

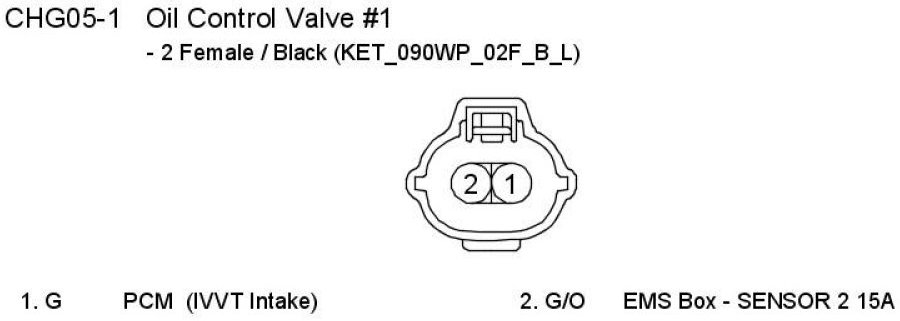

CHG05-1 Oil Control Valve # 1:






CHTG05-1 Oil Control Valve # 1:

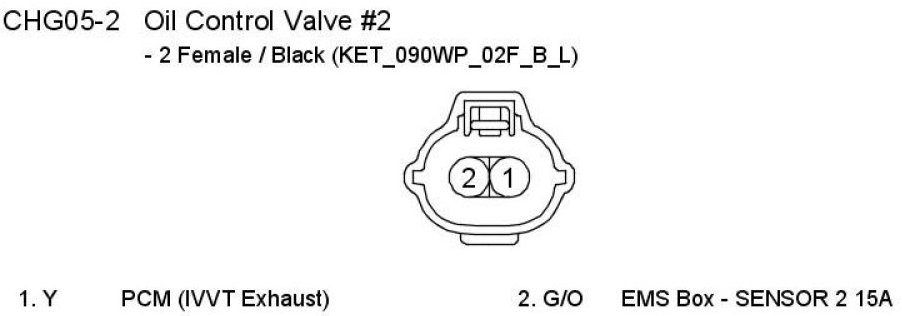

CHG05-2 Oil Control Valve # 2:






CHTG05-2 Oil Control Valve # 2:
