Signal Waveform

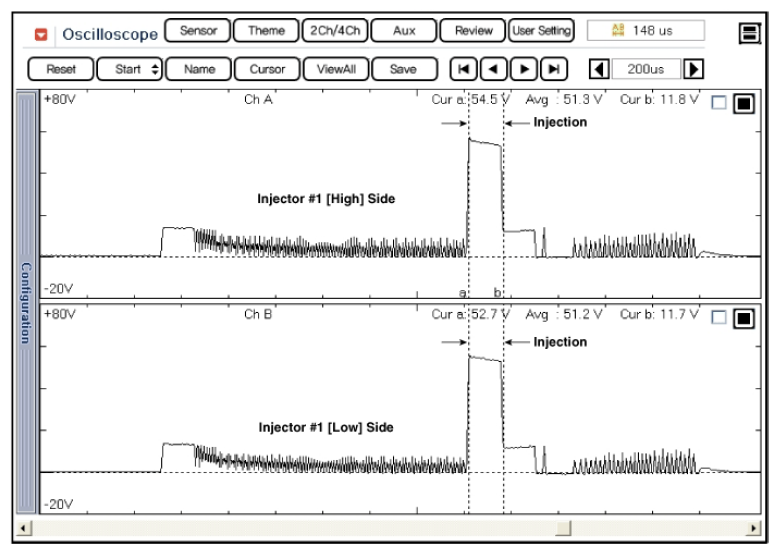

Fig 1: Screen Display - Injector Signal Waveform (1 Of 2)
G07366100Courtesy of HYUNDAI MOTOR CO.

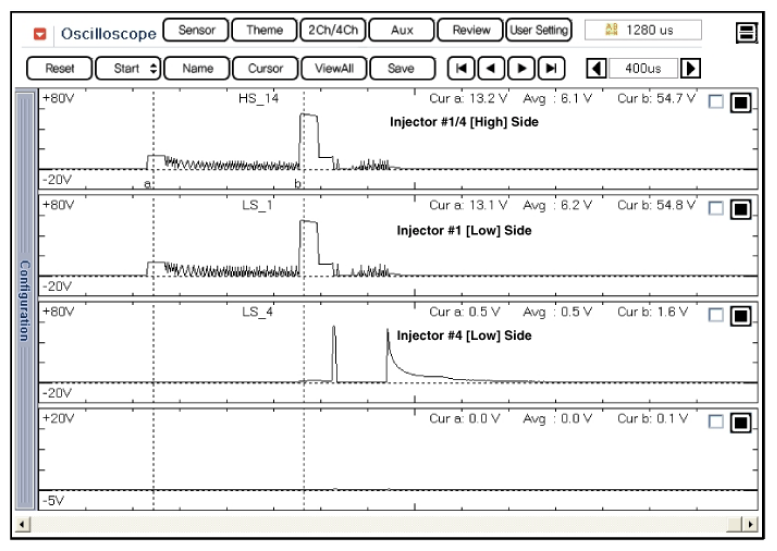

Fig 2: Screen Display - Injector Signal Waveform (2 Of 2)
G07366101Courtesy of HYUNDAI MOTOR CO.
