Components and Components Location: Components

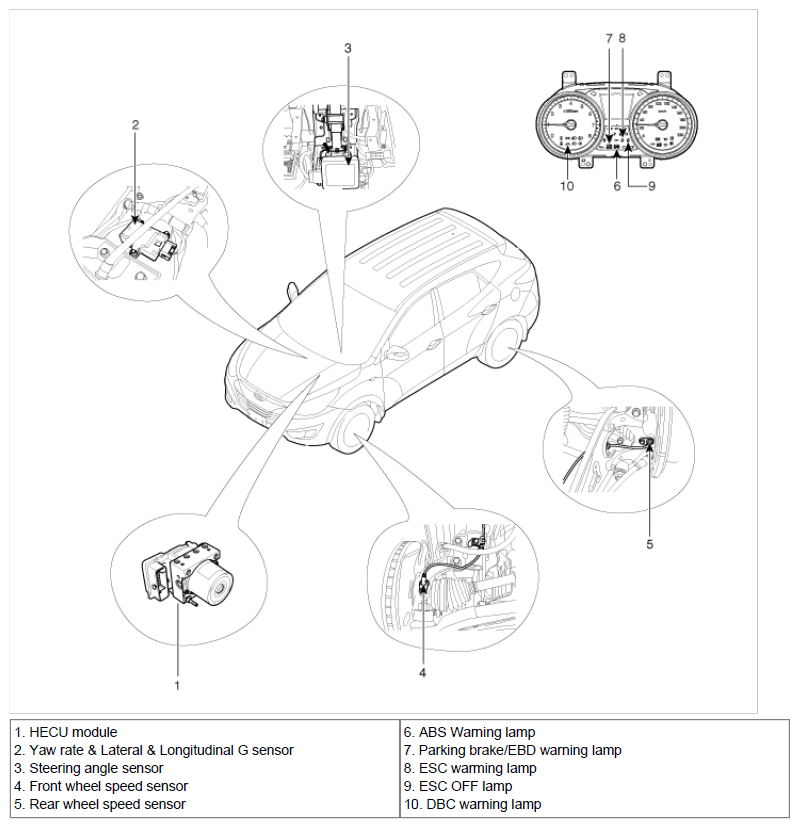

Fig 1: Identifying Electronic Stability Control Components Location
G06874541Courtesy of HYUNDAI MOTOR CO.
