Components and Components Location: Components

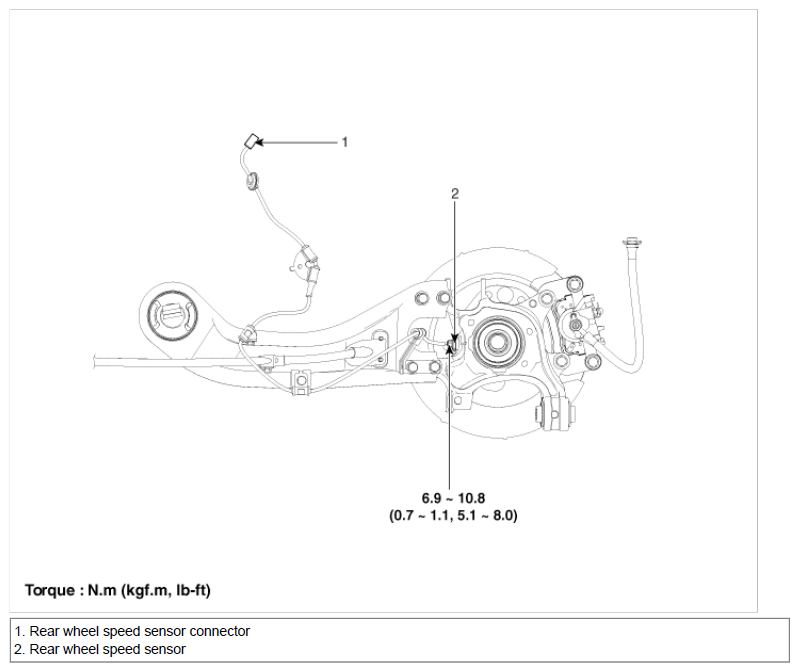

Fig 1: Rear Wheel Speed Sensor Replacement Components With Torque Specifications
G06874578Courtesy of HYUNDAI MOTOR CO.
