Floor Console Replacement: [M/T]

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the console upper cover (A).

Fig 1: Removing Console Upper Cover
Courtesy of HYUNDAI MOTOR AMERICA
Remove the console tray mat (A).

Fig 2: Identifying Console Tray Mat
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolt and clips, then remove the floor rear console (A).

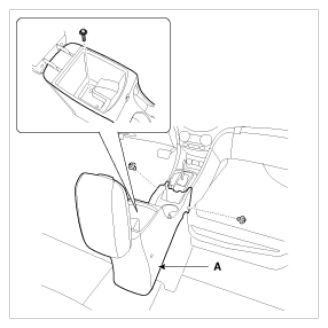

Fig 3: Identifying Floor Rear Console
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the floor console front bezel (A).

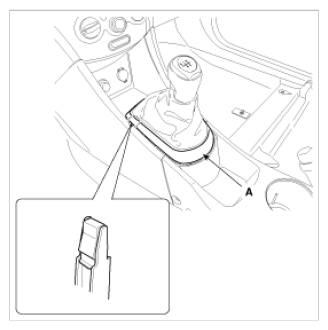

Fig 4: Identifying Floor Console Front Bezel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

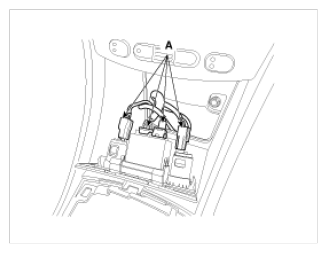

Fig 5: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and nut, clips, then remove the floor front console (A).

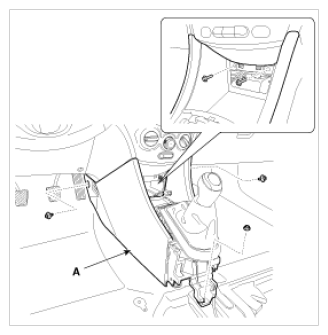

Fig 6: Identifying Floor Front Console
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the connector are connected in properly.
- Replace any damaged clips.
