Crash Pad Lower Panel Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Using a screwdriver or remover, remove the crash pad side cover (A).

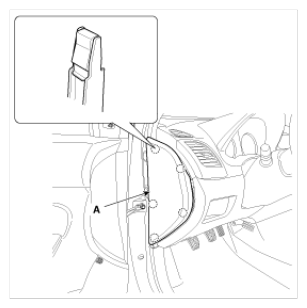

Fig 1: Removing Crash Pad Side Cover
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the fuse box cover (A).

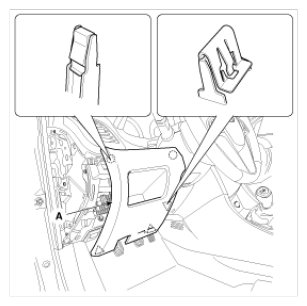

Fig 2: Removing Fuse Box Cover Using Screwdriver
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and screws, then remove the crash pad lower panel (A).

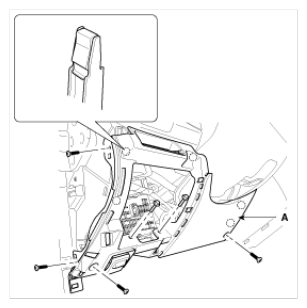

Fig 3: Removing Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors (A).

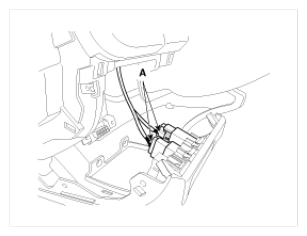

Fig 4: Identifying Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the diagnosis connector (A) and hood release handle cable (B).

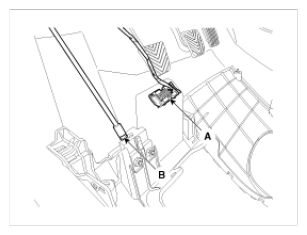

Fig 5: Identifying Diagnosis Connector And Hood Release Handle Cable
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Replace any damaged clips.
