Main Crash Pad Replacement

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items.
1. Front seat
  (Refer to "FRONT SEAT ")
2. Front pillar trim
  (Refer to "Front Pillar Trim Replacement ")
3. Floor console assembly
  (Refer to "Floor Console Replacement ")
4. Cluster fascia panel & Cluster assembly
5. Center fascia panel
6. Glove box & Glove box housing
7. Audio assembly
8. Heater control unit
9. Crash pad side cover
10. Front door scuff trim
  (Refer to "Door Scuff Trim Replacement ")
11. Crash pad lower panel
12. Steering column
  (Refer to "STEERING COLUMN AND SHAFT ")

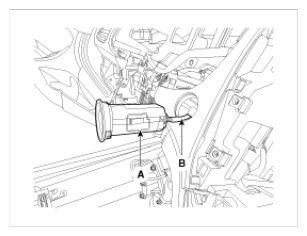

Using a screwdriver or remover, remove the start stop button (A).
Disconnect the start stop button connector (B).

Fig 1: Identifying Start Stop Button And Start Stop Button Connector
Courtesy of HYUNDAI MOTOR AMERICA

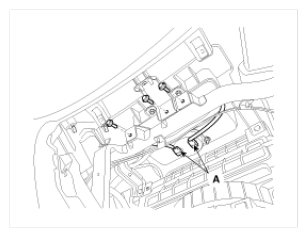

Disconnect the passenger's airbag connectors (A).
Loosen the mounting bolts.

Fig 2: Identifying Passenger's Airbag Connectors
Courtesy of HYUNDAI MOTOR AMERICA
Using a screwdriver or remover, remove the photo sensor (A).
Disconnect the photo sensor connector (B).

Fig 3: Identifying Photo Sensor And Photo Sensor Connector
Courtesy of HYUNDAI MOTOR AMERICA

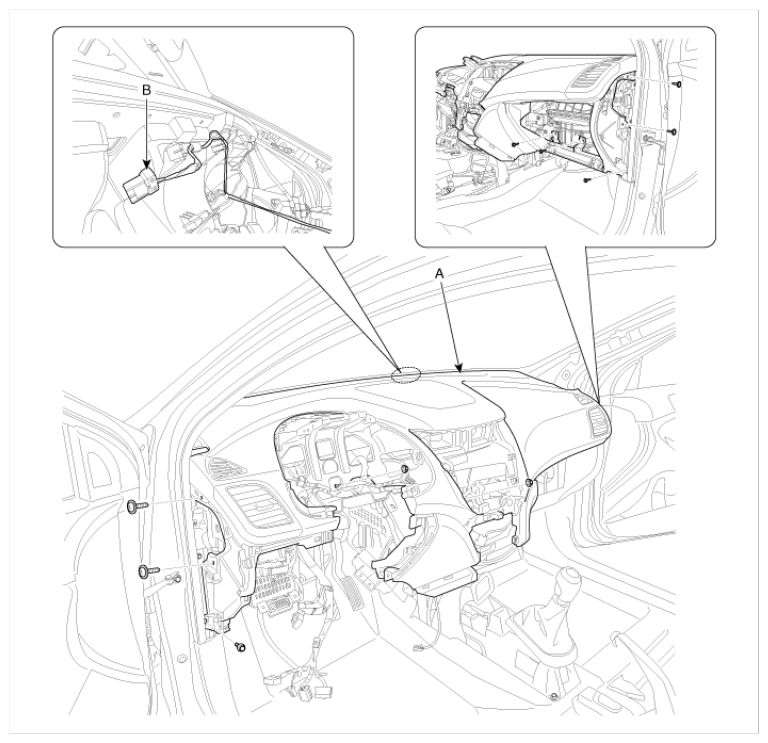

After loosening the mounting bolts, nuts, screws, then remove the main crash pad assembly (A).
Remove the photo sensor wiring (B).

Fig 4: Identifying Main Crash Pad Assembly And Photo Sensor Wiring
Courtesy of HYUNDAI MOTOR AMERICA
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
