Components and Components Location: Components

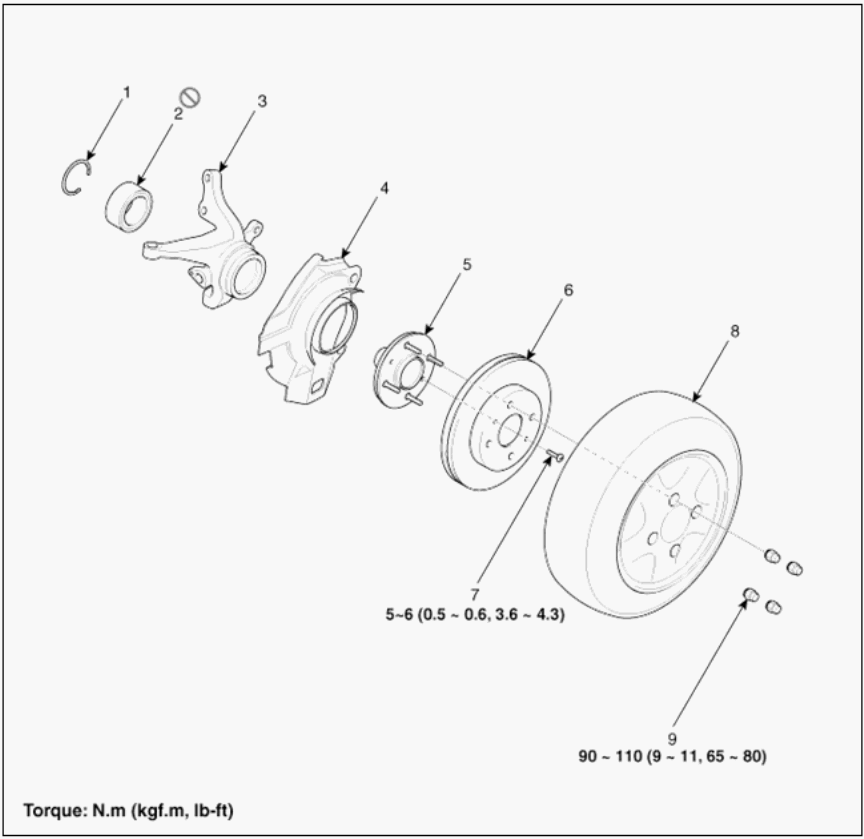

Fig 1: Front Hub / Knuckle Replacement Components With Torque Specifications
G08805255Courtesy of HYUNDAI MOTOR AMERICA
1. Snap ring 6. Wheel brake disc
2. Bearing 7. Brake disc fixing screw
3. Axle assembly 8. Wheel / Tire
4. Brake disc dust cover 9. Wheel nut
5. Wheel hub assembly
