Repair procedures: Disassembly

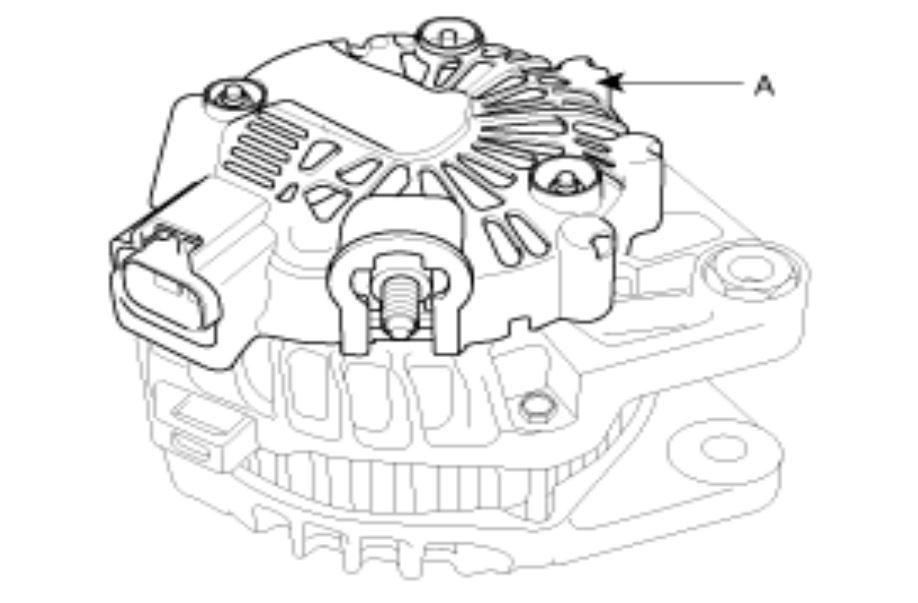

Remove the rear cover (A).

Fig 1: Identifying Rear Cover
Courtesy of HYUNDAI MOTOR AMERICA

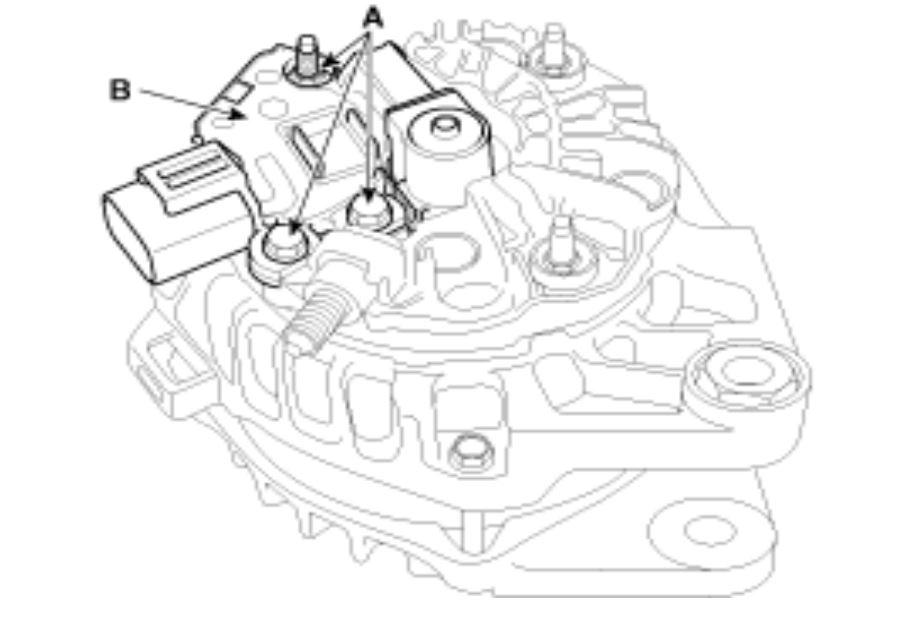

Loosen the mounting bolts (A) and disconnect the brush holder assembly (B).

Fig 2: Identifying Brush Holder Assembly And Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

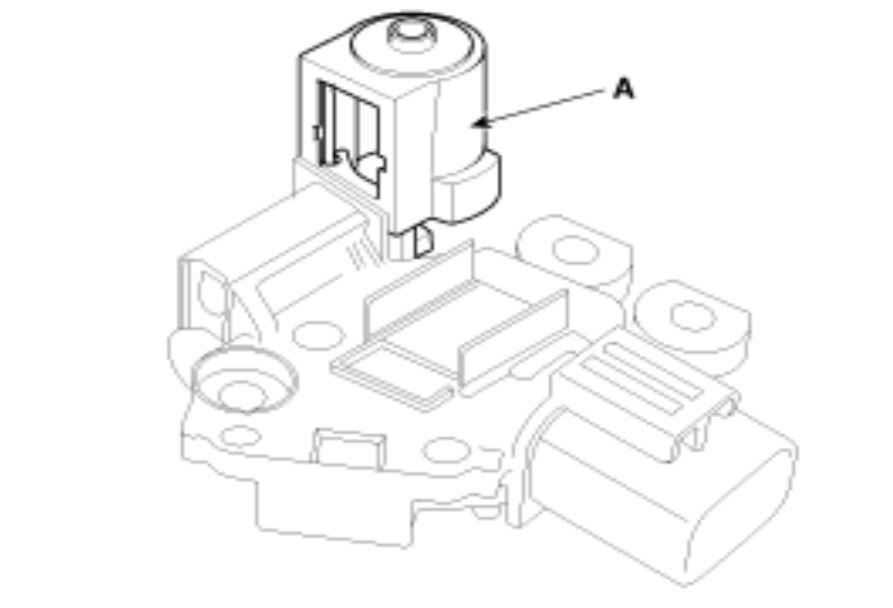

Remove the slip ring guide (A).

Fig 3: Identifying Slip Ring Guide
Courtesy of HYUNDAI MOTOR AMERICA

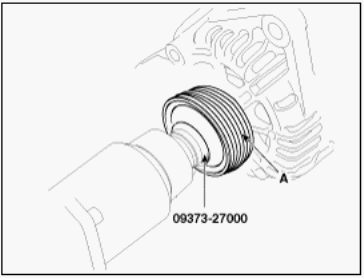

Remove the pulley (A) using the special tool.

Fig 4: Removing Pulley
Courtesy of HYUNDAI MOTOR AMERICA

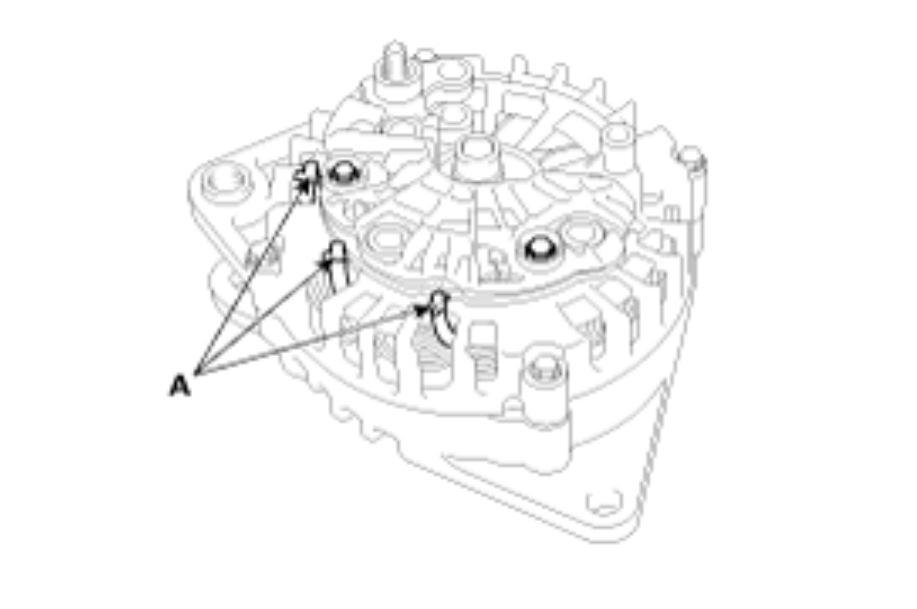

Unsolder the 3 stator leads (A).

Fig 5: Identifying Stator Leads
Courtesy of HYUNDAI MOTOR AMERICA

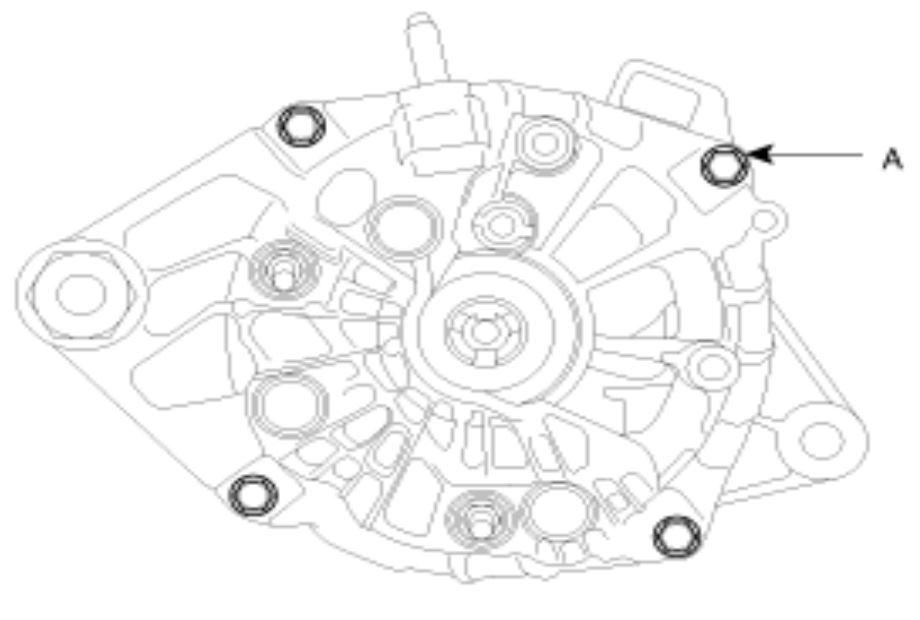

Loosen the 4 through bolts (A).

Fig 6: Identifying Through Bolts
Courtesy of HYUNDAI MOTOR AMERICA

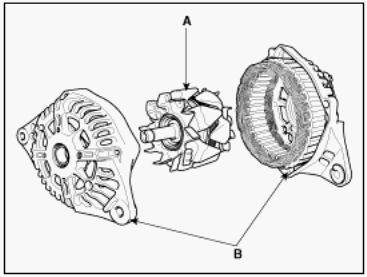

Disconnect the rotor (A) and bracket (B).

Fig 7: Identifying Rotor And Bracket
Courtesy of HYUNDAI MOTOR AMERICA
Reassembly is the reverse order of disassembly.
